Build Your Own Arduino Starter Kit: What You Actually Need to Get Started
A real Arduino starter kit needs six things to actually work on day one: a microcontroller board (Arduino Uno R3 is the standard reference board for tutorials), a breadboard for solderless prototyping, jumper wires, a resistor assortment to protect LEDs and other parts from overcurrent, an LED assortment for your first blink and output tests, and a stable 5V power source. Everything past that—sensors, motors, motor drivers, buzzers—is what turns a board that can blink an LED into a board that can sense motion, measure distance, read temperature, or turn a wheel. Buying the wrong mix is the single most common way beginners end up with parts that can't be wired together on day one.
What parts does a real Arduino starter kit need?
At minimum, a working starter kit needs an Arduino Uno R3 (or compatible ATmega328P board), a breadboard, jumper wires (solid-core for permanent breadboard connections, stranded for flexible links), a resistor variety pack, an LED assortment, and a regulated power supply. From there, a genuinely useful beginner kit adds a handful of inputs and outputs so you can build something in the first sitting: a push button or two, a potentiometer for analog input, a passive buzzer for audio feedback, and one or two sensors—typically an HC-SR04 ultrasonic distance sensor, a DHT11 temperature and humidity sensor, and a PIR motion sensor, since these three cover most first-project tutorials. If the kit includes a motor of any kind, it needs a motor driver module alongside it—a DC gear motor draws far more current than an Arduino pin can safely source, so the board and the motor should never be wired together directly.
Arduino Uno vs Arduino Nano — which should a beginner start with?
For a first kit, the Arduino Uno R3 is the better starting point. It uses the same ATmega328P microcontroller as the Nano, runs at the same 16MHz with the same 32KB of flash and 2KB of RAM, and exposes the same GPIO, I2C, SPI, UART, ADC, and PWM interfaces—but its full-size form factor and spaced-out header pins make it far easier to wire on a breadboard without pins bending or shorting. The Uno also accepts power two ways (5V over USB or 7–12V DC through the barrel jack), which matters once a project needs to run off a wall adapter instead of a laptop. The Nano's advantage is size: once you've built a few things on the Uno and want to shrink a project into an enclosure, the Nano's smaller footprint and lower price make it the natural second board, not the first one.
What's the difference between buying a kit and buying parts separately?
A kit guarantees the parts are electrically compatible with each other before they arrive—same logic voltage, matched connectors, resistor values that actually suit the LEDs included. Buying parts separately gives more control over exactly what you get (and lets you skip components you already own), but it puts the compatibility-checking work on you: a DC motor bought without a matching motor driver, or a 3.3V sensor mixed into a 5V-only kit, are both common first-order mistakes. The parts list further down this article was generated by asking Compoden's assistant, Soldr, a single beginner question, and it applied that compatibility check automatically—pairing the DC motor with a driver, flagging the pull-up resistor the DHT11 needs, and confirming every part runs on logic the Uno can supply.
What can you actually build with a starter kit?
With the parts in the table below, a beginner can build a motion-triggered alarm (PIR sensor plus buzzer), a desk thermometer with a humidity readout (DHT11), a parking-style distance meter (HC-SR04), an adjustable-brightness LED dimmer (potentiometer plus resistor), a button-triggered servo gate, and a two-motor rig driven through the L298N motor driver. None of these require additional purchases beyond what's listed—they're within reach in the first few sessions with the board.
Watch a real starter kit get built live
To show what an actual beginner interaction looks like rather than describe it abstractly, we asked Compoden's storefront assistant, Soldr, this exact question:
"I'm a complete beginner and want to get started with Arduino. What parts do I need for a starter kit?"

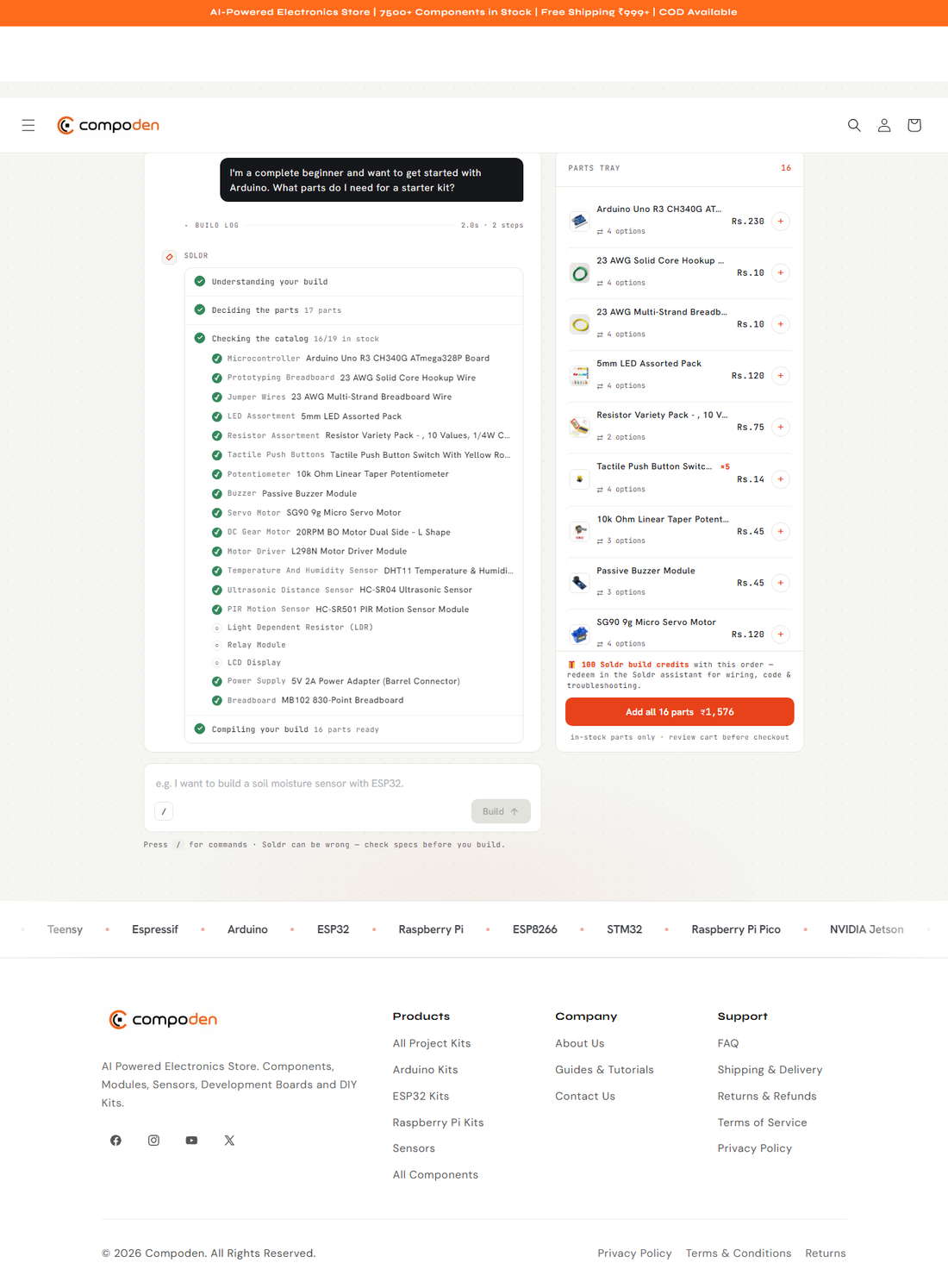

The screenshot below is the live result on compoden.com—Soldr checked its catalog, matched 16 parts, confirmed stock, and priced the full tray at ₹1,576, with an "Add all 16 parts" button that adds the exact tray to cart in one click.
We then asked a natural follow-up—"What else would I need to actually build a few beginner projects with this?"—to see how Soldr explains its own choices. Its reply, quoted directly and without edits:
"The Arduino Uno R3 CH340G ATmega328P Board is your main controller. It uses an ATmega328P microcontroller, which is like a tiny computer that follows your instructions. This board has many interfaces, which are ways it can talk to other parts, including general purpose input/output (GPIO) pins for simple on/off signals, I2C and SPI for more complex communication, UART for serial data, analog-to-digital converters (ADC) for reading sensor values, and pulse width modulation (PWM) for controlling motor speed or light brightness."
"The 20RPM BO Motor Dual Side – L Shape is a direct current (DC) motor that spins continuously. It accepts 3-12V and draws about 1000mA. This motor cannot be connected directly to your Arduino because it draws too much current, which would damage the board. For the DC motor, you need the L298N Motor Driver Module. A motor driver is a circuit that allows your Arduino to control higher-power motors."
Soldr also attached a plain-language build profile to the tray: difficulty "Easy (one part cannot be driven directly from a pin)", suitable for "roughly 11+ — younger builders should have an adult handle the wall adapter," and a note that the build "arrives pre-loaded in Soldr.dev, already populated with these exact parts," ready to generate a wiring diagram and firmware from the same tray.
Watch the first test program get generated
Parts are only half the starter-kit problem—the other half is knowing the board actually works once it arrives. We asked Compoden's build assistant, Soldr, running on the VoltIQ PWA, this prompt:
"I just got an Arduino Uno starter kit. Write a simple first test program to confirm my board is working and print a message to the serial monitor."
The firmware appears in the FIRMWARE tab all at once once generation finishes—there is no visible line-by-line streaming. The screenshot below shows the result: a build log that matched the Uno board, a Dupont jumper wire kit, a 5V 2A power adapter, an MB102 breadboard, and a resistor pack from the prompt alone, followed by working C++ that sets LED_PIN 13, calls Serial.begin(9600), and prints a boot banner over serial.
Soldr's own reply explained what the sketch does and flagged an honest limitation rather than pretending certainty it didn't have:
"Here's a simple sketch for your Arduino Uno to confirm it's working by blinking the built-in LED and printing a message to the serial monitor at 9600 baud. Upload this sketch to your Arduino Uno using the Arduino IDE, then open the Serial Monitor (Tools > Serial Monitor) to see the messages."
"Heads up — this code has not been checked against a board. Your build has parts in it, but no board I can compile for — so I could not verify the pins. If you are using a board you already own, tell me exactly which one and I will re-generate it properly wired for that board."
Who this kit is for
This parts list is built for someone who has never wired a breadboard before and wants a board that boots, a sensor that reads, and a motor that spins in the first week—not a hobbyist who already owns tools and just needs one missing sensor. Soldr's own build profile put the difficulty at "Easy" and the suitable age at roughly 11 and up, with an adult handling the wall-adapter wiring for younger builders. If you already own a breadboard, wires, or a resistor kit, skip those rows in the table below and buy only what's missing.
Get everything in this kit
This is the exact 16-part tray Soldr assembled for the beginner prompt above, with live prices and one-click cart links for each part.
| Part | Role | Price | Add to cart |
|---|---|---|---|
| Arduino Uno R3 CH340G ATmega328P Board | Microcontroller | ₹230 | Add to cart |
| 23 AWG Solid Core Hookup Wire | Breadboard wiring | ₹10 | Add to cart |
| 23 AWG Multi-Strand Breadboard Wire | Flexible jumper wiring | ₹10 | Add to cart |
| 5mm LED Assorted Pack | LED output | ₹120 | Add to cart |
| Resistor Variety Pack – 10 Values, 1/4W Carbon Film | Current-limiting resistors | ₹75 | Add to cart |
| Tactile Push Button Switch, Yellow (×5) | Button input | ₹70 (₹14 each) | Add to cart |
| 10k Ohm Linear Taper Potentiometer | Analog input | ₹45 | Add to cart |
| Passive Buzzer Module | Audio output | ₹45 | Add to cart |
| SG90 9g Micro Servo Motor | Positional motor | ₹120 | Add to cart |
| 20RPM BO Motor Dual Side – L Shape | Continuous DC motor | ₹91 | Add to cart |
| L298N Motor Driver Module | Motor driver for the DC motor | ₹180 | Add to cart |
| DHT11 Temperature & Humidity Sensor | Environment sensing | ₹45 | Add to cart |
| HC-SR04 Ultrasonic Sensor | Distance sensing | ₹85 | Add to cart |
| HC-SR501 PIR Motion Sensor Module | Motion sensing | ₹70 | Add to cart |
| 5V 2A Power Adapter (Barrel Connector) | Wall power | ₹170 | Add to cart |
| MB102 830-Point Breadboard | Prototyping breadboard | ₹210 | Add to cart |
| Total (16 parts) | ₹1,576 | Add all 16 to cart | |
If you'd rather not assemble a tray part by part, Compoden also sells the parts pre-boxed as the Professional Arduino Starter Kit with Sensors & Modules for ₹781—an Uno-compatible board with HC-SR04, DHT11, PIR, and IR obstacle sensors, a relay, buzzer, 16x2 LCD, breadboard, jumper wires, LEDs, resistors, and a potentiometer in one box, with a printed quick-start sheet and downloadable wiring PDF included.
Built and Backed by Compoden
Every part in the table above ships from Compoden's own stock with live inventory shown at checkout, not a third-party marketplace listing that may or may not be in stock when you order. The tray itself was generated by Soldr, Compoden's build assistant, which cross-checks part compatibility (logic voltage, current draw, whether a motor needs a driver) before it ever reaches your cart, and the same tray carries over into Soldr.dev to generate a wiring diagram and firmware once you're ready to build.
Frequently asked questions
Do I need to buy a pre-assembled kit, or can I buy the parts separately?
Either works. A pre-assembled kit guarantees the parts are compatible with each other out of the box. Buying parts separately lets you skip anything you already own and add exactly what a specific project needs, but you're responsible for checking voltage and current compatibility yourself.
Should a complete beginner start with an Arduino Uno or an Arduino Nano?
Start with the Uno. It uses the same ATmega328P chip and the same interfaces as the Nano, but its larger form factor and spaced header pins are easier to wire on a breadboard without shorting pins together.
Can I wire a DC motor directly to the Arduino's pins?
No. A small hobby DC motor like the 20RPM BO motor draws around 1000mA, far more than an Arduino pin can safely source. It needs a motor driver module, such as the L298N, between the board and the motor.
What can I build with just the parts in this kit?
With this tray you can build a PIR-triggered buzzer alarm, a DHT11 temperature and humidity display, an HC-SR04 distance meter, a potentiometer-controlled LED dimmer, a push-button-triggered servo, and a two-motor rig through the L298N driver, all without buying anything beyond what's listed.
