Build Your Own Drone Starter Kit: What You Actually Need to Get Started
A beginner drone starter kit needs eight functional pieces working together, not one: a frame to hold everything, four brushless motors to generate lift, an ESC (electronic speed controller) per motor to convert flight-controller signals into motor power, a flight controller to run the stabilization software, a LiPo battery sized to the motors' real current draw, a radio transmitter (matched to a receiver) to fly it, propellers in clockwise/counter-clockwise pairs, and basic wiring and prototyping supplies. A real quote for this parts list from Compoden's live storefront came to roughly ₹18,676 — a first drone is a materially bigger and pricier build than a single-sensor Arduino project, and this article documents an actual live quote rather than a rounded estimate.
What parts does a beginner drone kit need?
Every quadcopter needs the same eight roles filled, regardless of which specific parts you buy:
- Frame — the structure that holds the motors, flight controller, and battery in place.
- Brushless motors (x4) — spin the propellers; rated by size and KV (RPM per volt).
- ESCs (x4) — one per motor, converting the flight controller's signal into the motor drive current.
- Flight controller — the onboard computer that reads sensors and adjusts each motor to keep the craft stable.
- LiPo battery — sized in both voltage (cell count, e.g. 3S = 11.1V) and discharge rating (the "C" number), which has to match what the motors and ESCs actually draw under load.
- Radio transmitter and receiver — the transmitter is the handheld remote; it needs a receiver bound to it, mounted on the drone, to actually pass commands to the flight controller.
- Propellers — sold in CW/CCW (clockwise/counter-clockwise) pairs, because a quadcopter needs two of each rotation direction to cancel out torque.
- Wiring and a prototyping surface — for the low-current signal and sensor connections; the high-current motor and battery leads are a separate matter (see below).
What's the difference between a flight controller and an ESC?
They sit at opposite ends of the same signal chain. The flight controller is the decision-maker: it reads the drone's orientation many times a second and calculates how much power each of the four motors needs to keep the craft level and follow the pilot's stick inputs. It cannot drive a motor directly — a brushless motor needs three-phase switching current far beyond what a flight controller's logic pins can supply. That's the ESC's job: each ESC sits between the flight controller and one motor, takes the flight controller's PWM signal, and converts it into the switched high-current output that actually spins that motor. A quadcopter needs four ESCs, one per motor, and losing or miswiring any one of them takes that motor out of the stabilization loop entirely.
Do you need to solder to build a drone?
For the power side, generally yes. Motor and ESC leads, the battery's XT60 connector, and the power distribution wiring carry real current under a spinning propeller's load — a breadboard's spring contacts aren't rated for that and aren't safe to use there. Soldering (or using pre-soldered bullet connectors) on the battery-to-ESC-to-motor path is standard practice, not an optional upgrade. The signal-level wiring between the flight controller and the ESCs or receiver is lower current and more forgiving, but most builders solder or crimp those too once the layout is finalized, since a drone's own vibration will eventually work a loose jumper wire free mid-flight.
What can go wrong on a first drone build?
Three things account for most first-build problems, and the same live quote below surfaced two of them without being asked:
- Wrong motor spin direction or reversed wiring. Each motor position needs a specific rotation direction and a matching propeller (CW or CCW); get either wrong and the craft won't lift evenly or will flip on spin-up.
- Skipping ESC and flight controller calibration. A flight controller has to be calibrated before its stabilization output is trustworthy; an uncalibrated board can produce unstable or uncontrollable flight even with everything wired correctly.
- Undersizing the battery for the real current draw. This is easy to miss because a single battery's mAh rating looks fine on its own. On the exact build below, the system's own build-check flagged that the four motors and ESCs can peak at roughly 220A combined, while the picked 3S 2200mAh battery is only rated to supply about 66A continuously — a real gap that has to be closed with a higher-discharge or higher-capacity battery before the drone flies as intended, not after.
A fourth item worth checking before you order: a radio transmitter only works with a receiver bound to it. The build below priced a transmitter but its own gap-check flagged that no matching receiver was in the tray — confirm one is included or add it separately.
Watch a real starter kit get built live

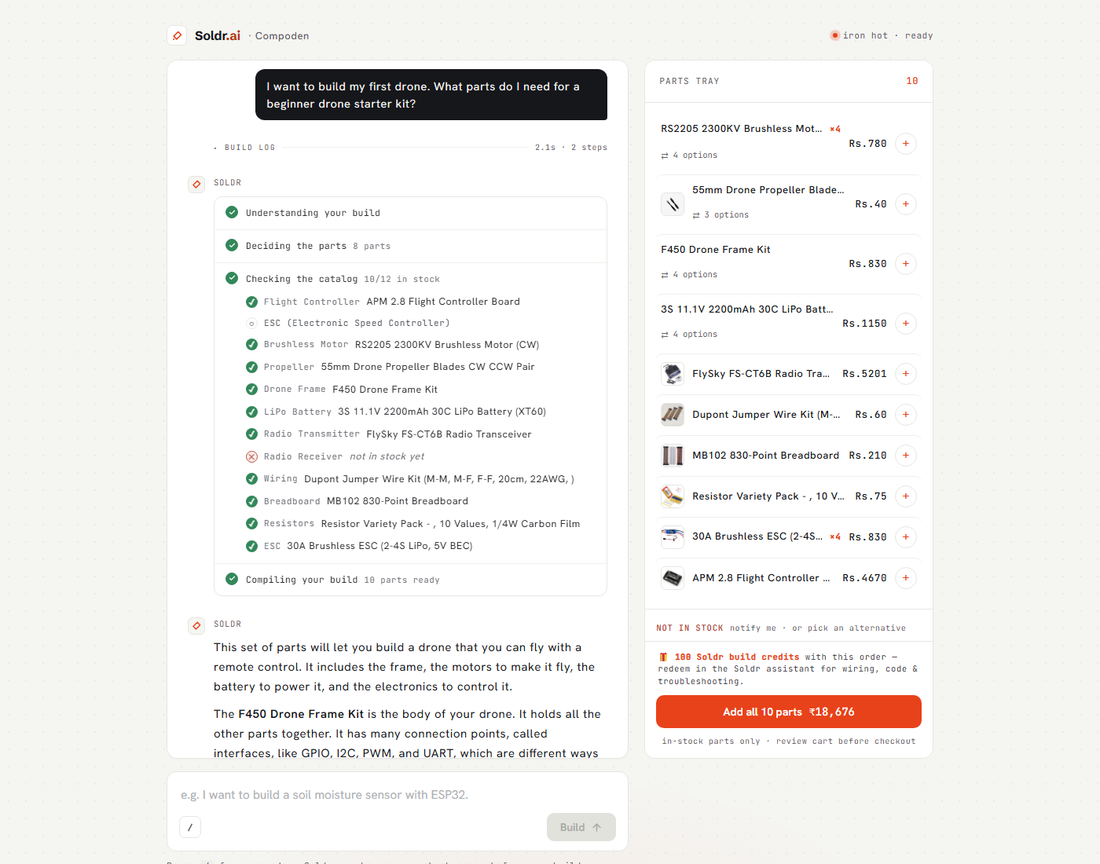

Rather than describe a generic parts list, we typed one real sentence into Compoden's AI build assistant on the storefront and let it pick parts, price them, and explain its reasoning — unscripted, screenshotted as it happened:
"I want to build my first drone. What parts do I need for a beginner drone starter kit?"
It picked ten in-stock parts (counting quantities: four motors, four ESCs, and one each of the frame, battery, propeller pair, transmitter, breadboard, jumper wires, and resistor pack) and explained each in plain terms. On the flight controller and ESC specifically, it wrote:
"The APM 2.8 Flight Controller Board is the main brain of your drone. It uses its many interfaces like I2C, PWM, SPI, UART, and USB to connect to all the other parts... This board needs to be set up and calibrated before it can accurately control the drone."
"The four 30A Brushless ESC (2-4S LiPo, 5V BEC) are the electronic speed controllers. These parts are essential because they take the signals from your flight controller and turn them into the right power for the brushless motors."
The real total for this quote was ₹18,676 — noticeably more than a single-sensor Arduino build, and an honest reflection of what a first quadcopter with a real flight controller, four brushless motors, and a radio system actually costs. We are not rounding this down: a beginner drone kit is a four-figure-plus purchase in India, not a few hundred rupees.
Watch the flight controller bring-up sketch get generated
We then asked Compoden's build companion, Soldr, to write a first test program to confirm the flight controller was working. Because the APM 2.8 board's stabilization logic runs on an onboard MPU6050 IMU chip, Soldr generated a serial bring-up test for that chip specifically — not a full ArduPilot/Mission Planner flight-mode configuration walkthrough, which is the separate, GUI-based step a real APM board needs afterward to actually fly:
The generated sketch initializes the chip over I²C, prints a "MPU6050 Found!" message once it responds, and streams live accelerometer, gyroscope, and temperature readings to the Serial Monitor so you can confirm the sensor is alive and wired correctly before moving on to full flight-controller configuration. Code appeared essentially all at once once the Firmware tab became available — there was no visible character-by-character generation to watch. This is a hardware sanity check, not the ground-control-software setup that a real APM 2.8 needs before its first flight; be aware both steps exist and this build assistant currently only produces the former.
Who is a first drone build actually for?
Be realistic about this relative to a single-sensor project: soldering high-current connections, calibrating a flight controller, balancing four motors, and getting radio binding right before the props ever spin is a bigger jump than wiring one I²C sensor to an Arduino. Soldr's own build profile for this exact quote rated it "Difficulty: Easy (one part must be calibrated before it reads correctly; one part cannot be driven directly from a pin)" and suggested it's "suitable for roughly 11+" — but that's the software's generic per-part rating, not a substitute for adult supervision around spinning propellers and a LiPo battery pack, and it undersells how many things have to be correct simultaneously (wiring, spin direction, calibration, current sizing) before this specific build actually flies. Treat a first drone as a weekend project you build carefully once, test on the bench with props off, then fly cautiously — not a one-evening plug-and-play kit.
Get everything in this kit
The exact parts Soldr picked above, at today's live price and stock — each links straight to checkout, or add the whole tray in one click.
| Part | Qty | Price | |
|---|---|---|---|
| RS2205 2300KV Brushless Motor (CW) | 4 | ₹3,120 | Add to cart → |
| 30A Brushless ESC (2-4S LiPo, 5V BEC) | 4 | ₹3,320 | Add to cart → |
| APM 2.8 Flight Controller Board | 1 | ₹4,670 | Add to cart → |
| FlySky FS-CT6B Radio Transceiver | 1 | ₹5,201 | Add to cart → |
| 3S 11.1V 2200mAh 30C LiPo Battery (XT60) | 1 | ₹1,150 | Add to cart → |
| F450 Drone Frame Kit | 1 | ₹830 | Add to cart → |
| MB102 830-Point Breadboard | 1 | ₹210 | Add to cart → |
| Resistor Variety Pack, 10 Values, 1/4W Carbon Film | 1 | ₹75 | Add to cart → |
| Dupont Jumper Wire Kit (M-M, M-F, F-F, 20cm, 22AWG) | 1 | ₹60 | Add to cart → |
| 55mm Drone Propeller Blades CW CCW Pair | 1 | ₹40 | Add to cart → |
| Total | ₹18,676 | Add all to cart → |
Prices and stock verified live at the time this was written; Compoden's storefront always reflects the current price at checkout. Confirm a matching radio receiver is included or added separately, and size your battery to the build's real peak current before your first flight, as noted above.
If assembling ten separate parts is more than you want to take on for a first drone, Compoden also stocks the LiteWing ESP32 DIY Drone Kit (₹2,240) as a one-click alternative — it's a smaller, ESP32-based programmable micro-drone rather than this build's 450mm-class RC quadcopter, so the flying experience and skill involved are different, but everything ships together as one already-matched unit.
Built and Backed by Compoden
Every part above ships from Compoden's own India stock, checked for compatibility before it's carded together. Delivery in 3–7 days across India, with COD and UPI available at checkout. This exact tray also carries over into Soldr.dev after purchase, already populated with these parts, where it generates the wiring diagram, firmware, and test steps for this specific hardware combination rather than a generic drone guide. If a part doesn't perform as described, Compoden's support team will help you troubleshoot or replace it.
FAQ
How much does a beginner drone starter kit actually cost?
In a real live quote from Compoden's storefront, a full parts list — frame, four motors, four ESCs, flight controller, battery, propellers, and radio transmitter — came to ₹18,676. Costs vary with the specific motors, flight controller, and radio gear chosen, but a beginner quadcopter build is a four-figure-plus purchase, not a low-cost weekend add-on.
Is a flight controller the same thing as a remote control?
No. The radio transmitter and receiver are how a pilot's stick inputs reach the drone. The flight controller is the onboard computer that takes those inputs plus its own sensor readings and decides how much power to send to each motor to keep the craft stable. One is the remote; the other is the brain.
Do I need to solder to build a drone?
For the battery, ESC, and motor power connections, yes — those carry real current and a breadboard isn't rated for it. Lower-current signal wiring between the flight controller and ESCs is more forgiving but is usually soldered or crimped too, since vibration during flight can work a loose connection free.
Why do I need four ESCs instead of one?
A quadcopter has four independently-controlled motors, and each ESC converts the flight controller's per-motor signal into that motor's actual drive current. One ESC can only drive one motor, so four motors need four ESCs.
