Build Your Own Raspberry Pi Starter Kit: What You Actually Need to Get Started
A Raspberry Pi starter kit needs six things at minimum: a Raspberry Pi board (Pi 4 or Pi 5 for a full Linux computer, or a Pi Pico for a cheaper microcontroller-only build), a power adapter matched to that board's port, a microSD card of at least 16GB to hold the operating system, an HDMI cable if you plan to use a monitor, a breadboard with jumper wires for wiring up sensors and outputs, and a small assortment of beginner components — LEDs, a push button, resistors, and one or two sensors — to give you something to actually build once the board boots. Everything beyond that (a camera module, a display, motors, additional sensors) is optional and depends on which projects you want to try first.
What parts does a Raspberry Pi starter kit need?
At the core, a Raspberry Pi build needs a controller, a way to store and load its operating system, and a way to power it. The Raspberry Pi 4 and 5 are full single-board computers that run Linux, so unlike an Arduino they need a microSD card (the OS lives there, not on the chip) and a proper power supply rather than whatever USB cable happens to be nearby. From there, a "starter" kit layers on the parts that make the board interactive: a breadboard and jumper wires to prototype without soldering, a resistor assortment to protect LEDs and sensors from too much current, and a handful of beginner-friendly modules — an ultrasonic distance sensor, a PIR motion sensor, a light sensor, a small display — that turn a bare board into something you can point, measure, and read from within an afternoon.
One part beginners often miss: many common sensor modules run their signal logic at 5V, while the Raspberry Pi's GPIO pins are only rated for 3.3V. Feeding a Pi's GPIO pin 5V directly can damage it. A level-shifter IC (or a sensor module that already outputs 3.3V) is what actually protects the board here — it is not just a "nice to have" for this kind of mixed-sensor build.
Raspberry Pi vs Raspberry Pi Pico — what's the difference?
The Raspberry Pi (Pi 3, 4, 5, Zero, and their variants) is a full single-board computer: it runs a Linux distribution (Raspberry Pi OS), boots from a microSD card, has USB ports, HDMI output, and networking, and can run Python, run a desktop environment, browse the web, or host a server. The Raspberry Pi Pico is a different product entirely — a microcontroller board built around the RP2040 or RP2350 chip, closer in spirit to an Arduino than to a computer. It has no operating system, no HDMI, no built-in networking on the base model, and costs a fraction of the price. You write code for it in MicroPython or C, it starts running that code on power-up, and it's a better fit for a single dedicated task (blink a light, read a sensor, control a motor) than for general computing.
If your goal is a real computer you can log into, run software on, and expand freely, get a full Raspberry Pi. If your goal is closer to what people do with an Arduino — one focused electronics project at a time, on a tighter budget — a Raspberry Pi Pico kit is the cheaper starting point. Compoden stocks both; the live build below shows exactly which one the storefront assistant recommends when you ask a plain, unqualified "get started with Raspberry Pi" question.
What can you build with a Raspberry Pi starter kit?
With the sensor-and-output assortment described above, a beginner kit supports a handful of self-contained first projects: an ultrasonic distance gauge that reads centimetres on an OLED screen, a motion-triggered light or buzzer using the PIR sensor, a light-activated night-light using the LDR, a servo that sweeps in response to a button press, and simple GPIO exercises that blink LEDs in patterns controlled from Python. None of these require internet connectivity or a monitor once you're comfortable working over SSH — the Pi's Wi-Fi and Bluetooth (built into the 4 and 5) let you develop headless from another computer on the same network.
Do you need a separate power supply for Raspberry Pi?
Yes — Raspberry Pi boards ship without one. Official guidance from the Raspberry Pi Foundation is a 5V/3A supply through USB-C for the Raspberry Pi 4 and 5; the Raspberry Pi 3 and earlier boards power through Micro-USB instead, typically at 5V/2.5A. Check which port your specific board uses before ordering a cable or adapter separately, since the two connector types aren't interchangeable. It also matters once you start adding peripherals: a camera module, a handful of sensors, and a servo motor under load can push total current draw well past what a bare board needs, so sizing the supply for the full kit — not just the board on its own — avoids brownouts and random resets during a project.

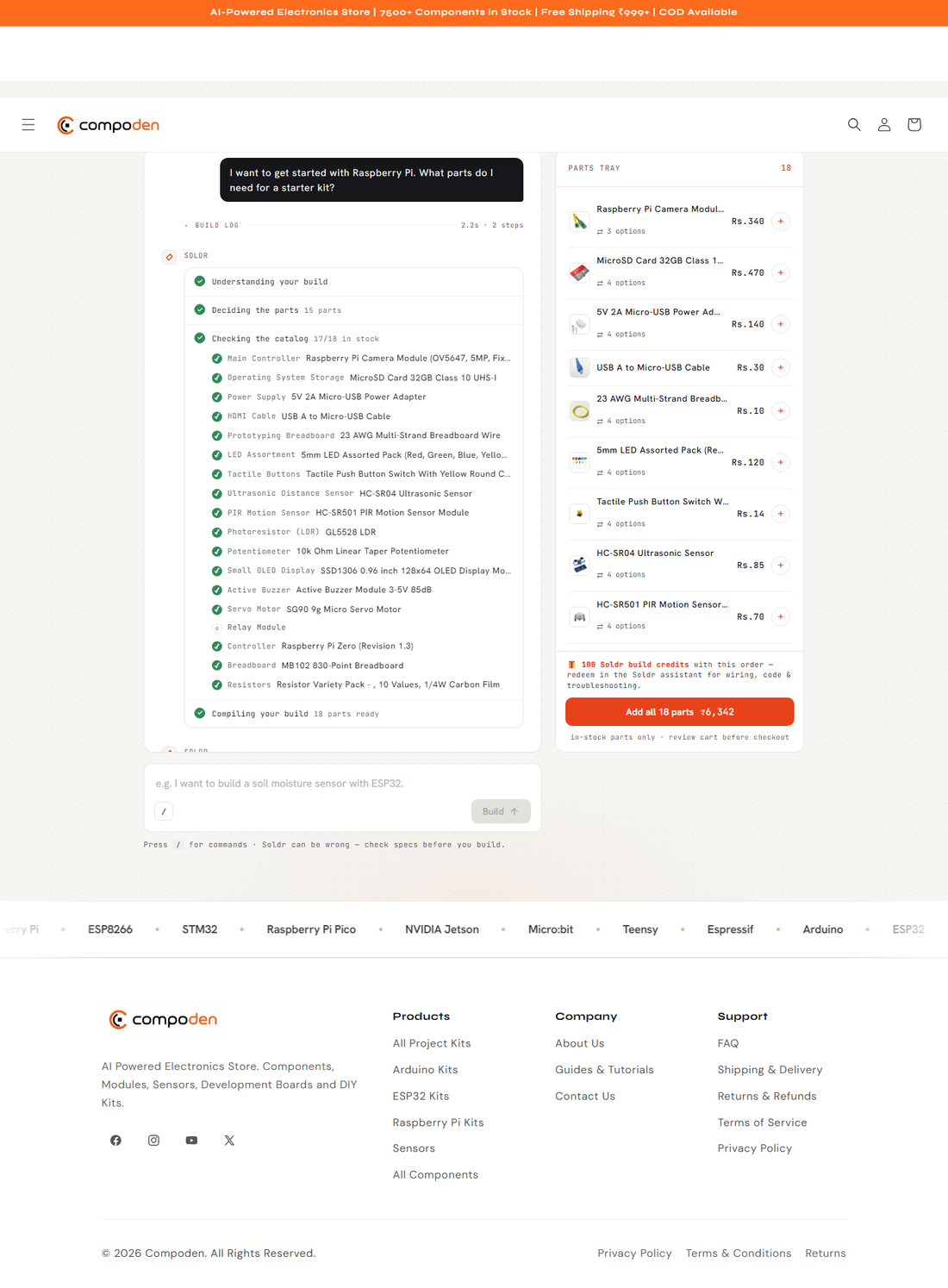

Watch a real starter kit get built live
To keep this honest, we asked Compoden's own storefront assistant the exact question a beginner would type, and captured what it actually returned — no editing.
Prompt sent to the assistant: "I want to get started with Raspberry Pi. What parts do I need for a starter kit?"
The assistant assembled an 18-part tray built around a Raspberry Pi 4 Model B (1GB), and explained its reasoning in plain terms:
"This starter kit lets you build small projects that interact with the world around them. You can make things that react to light, movement, or distance, and show information on a small screen or make sounds. It's a great way to learn how to connect different electronic parts to a computer."
"The Raspberry Pi 4 Model B 1GB is your main computer for this kit. It has a powerful Broadcom BCM2711 microcontroller with an Armv8-A (64-bit) core, built-in Wi-Fi, Bluetooth, and Ethernet for connecting to networks and other devices. […] This Raspberry Pi is chosen because it is the lowest-cost part that meets the requirement for a powerful, general-purpose controller in this kit."
It also attached a build profile to the tray:
Difficulty: Easy (one part must be calibrated before it reads correctly). Suitable for: roughly 11+ — younger builders should have an adult handle the wall adapter. After you buy: this build arrives pre-loaded in Soldr.dev, already populated with these exact parts, and generates your wiring diagram, firmware, test steps and troubleshooting from this tray so you never start from a blank page.
Note on the tray above: it pairs the Pi 4 with a Micro-USB power adapter and cable. The Raspberry Pi 4 actually powers over USB-C, not Micro-USB — if you're assembling this exact list yourself, swap in a USB-C adapter rated 5V/3A rather than the Micro-USB one shown, and double-check your board's port before checkout either way.
Watch the first test program get generated
Next we took the same scenario to Compoden's build assistant, Soldr, at voltiq-pwa.pages.dev, and asked for the smallest possible first step: "I just got a Raspberry Pi starter kit. Write a simple first test program to confirm it's working and print a message."
Because a Raspberry Pi runs a full Python interpreter rather than needing code compiled and flashed, Soldr correctly generated a Python script (not Arduino-style firmware) — the interface even shows "Python runs straight on the board — no compile step" next to the code panel. The generated file, first_test.py, imports Python's built-in platform, sys, os and time modules and prints the OS name, kernel release, machine architecture and Python version to the terminal — a quick, no-wiring-required way to confirm the board is alive before touching a breadboard. Soldr's own instructions were direct: "Flash Raspberry Pi OS to your SD card using Raspberry Pi Imager, enable SSH (optional but recommended), boot the Pi, then save this code as first_test.py and run it from the terminal with python3 first_test.py."
The code appeared essentially all at once once the Firmware tab became available — there was no visible character-by-character streaming in this session. Soldr also flagged its own limits honestly, rather than pretending certainty it didn't have: "Heads up — this code has not been checked against a board. Your build has parts in it, but no board I can compile for — so I could not verify the pins. If you are using a board you already own, tell me exactly which one and I will re-generate it properly wired for that board." That caveat is worth taking seriously — it's a plain-Python system check, not a wiring-verified sensor program, and it's a sound way to confirm your Pi boots and runs code before you wire anything to its GPIO pins.
Who this kit is for
This build suits someone roughly 11 and up who already owns a monitor, keyboard, and mouse (or is comfortable working headless over SSH from another computer) and wants a general-purpose Linux computer to learn on — not just a single-purpose electronics project. It's a reasonable next step for anyone who has already tried an Arduino or ESP32 kit and wants networking, a real file system, and Python out of the box, or for anyone starting directly with the goal of running small home-automation, camera, or sensor-logging projects that benefit from a full OS.
Get everything in this kit
These are the exact 18 parts the storefront assistant selected live, above, with direct add-to-cart links. Prices and availability are pulled from Compoden's live catalog and may change.
| Part | Role in the kit | Price | Add to cart |
|---|---|---|---|
| Raspberry Pi 4 Model B (1GB) | Main controller | Rs.4,250 | Add to cart |
| Raspberry Pi Camera Module (OV5647, 5MP, Fixed Focus) | Camera input | Rs.340 | Add to cart |
| MicroSD Card 32GB Class 10 UHS-I | Operating system storage | Rs.470 | Add to cart |
| 5V 2A Micro-USB Power Adapter | Power supply (see port note above) | Rs.140 | Add to cart |
| USB A to Micro-USB Cable | Adapter-to-board cable | Rs.30 | Add to cart |
| MB102 830-Point Breadboard | Prototyping breadboard | Rs.210 | Add to cart |
| 23 AWG Multi-Strand Breadboard Wire | Breadboard connections | Rs.10 | Add to cart |
| Resistor Variety Pack (10 Values, 1/4W Carbon Film) | Current-limiting resistors | Rs.75 | Add to cart |
| CD40109BE Level Shifter IC | 3.3V/5V logic level-shifting | Rs.73 | Add to cart |
| 5mm LED Assorted Pack (Red, Green, Blue, Yellow, White) | Visual output | Rs.120 | Add to cart |
| Tactile Push Button Switch (Yellow) | Digital input | Rs.14 | Add to cart |
| HC-SR04 Ultrasonic Sensor | Distance sensing | Rs.85 | Add to cart |
| HC-SR501 PIR Motion Sensor Module | Motion sensing | Rs.70 | Add to cart |
| GL5528 LDR | Light sensing | Rs.5 | Add to cart |
| 10k Ohm Linear Taper Potentiometer | Analog input | Rs.45 | Add to cart |
| SSD1306 0.96" 128x64 OLED Display Module | Local display output | Rs.240 | Add to cart |
| Active Buzzer Module (3-5V, 85dB) | Audible alerts | Rs.45 | Add to cart |
| SG90 9g Micro Servo Motor | Basic actuation | Rs.120 | Add to cart |
| Total (18 parts) | Rs.6,342 | Add all 18 to cart | |
Prefer a pre-assembled option instead of picking items individually? Compoden also stocks a Raspberry Pi 4 Model B (4GB) Standard Starter Kit at Rs.3,250 as a one-click alternative — a smaller, curated bundle around the same board family rather than the full 18-part tray above. Check current stock on the product page before ordering.
Built and Backed by Compoden
Every part in the table above ships from Compoden's own catalog with stated stock status at the time of writing, and the storefront assistant that assembled this tray is the same tool live on compoden.com today — nothing here was staged for this article. Compoden sources components for Arduino, ESP32, and Raspberry Pi builds alike and backs orders with standard shipping and support across India.
Frequently asked questions
- Do I need a monitor and keyboard for a Raspberry Pi?
- Not necessarily. You can flash Raspberry Pi OS with SSH enabled ahead of time and connect to the board entirely over your network from another computer's terminal — this is how the first-test program above was designed to run. A monitor, keyboard, and mouse make initial setup easier but aren't required once you're comfortable with a headless workflow.
- What's the real difference between Raspberry Pi and Raspberry Pi Pico?
- A Raspberry Pi is a full Linux computer with an operating system, file storage, and networking. A Raspberry Pi Pico is a microcontroller board with no OS — it runs one program at a time, starting the moment it's powered on, similar to how an Arduino works. Pick the full Pi for general computing and multiple projects; pick a Pico kit for a single, focused, lower-cost electronics build.
- Can I build these projects using only Python?
- Yes. Unlike Arduino-family boards, a Raspberry Pi runs Python 3 natively with no separate compile-and-flash step — write a script, run it with
python3 script.py, and it executes immediately. The first-test program captured above is a working example of exactly that. - Which Raspberry Pi model should a beginner buy?
- A Raspberry Pi 4 Model B is a solid general-purpose starting point with enough performance for most beginner and intermediate projects, built-in Wi-Fi and Bluetooth, and a lower price than the Raspberry Pi 5. If your goal is a single dedicated electronics project rather than a general computer, a Raspberry Pi Pico kit costs less and skips the OS entirely.
