Build Your Own Wearable Tech Starter Kit: What You Actually Need to Get Started
A wearable tech starter kit for a project like a step counter needs four things: a small, low-power microcontroller board to act as the brain, a motion sensor (typically an accelerometer/gyroscope module such as the MPU6050) to detect movement, a compact battery so the circuit can run off your wrist or belt instead of a wall socket, and basic prototyping hardware — a breadboard, jumper wires, and a handful of resistors — to wire everything together before committing to a permanent build. Total cost for a beginner kit built from individual parts typically lands under ₹1,000.
What parts does a wearable electronics starter kit need?
Every wearable electronics project, from a step counter to a posture trainer, is built from the same four categories of parts:
- A microcontroller board — the small computer that reads sensor data and runs your logic. For wearables this should be physically small and run on low voltage.
- A motion sensor — most commonly a 3-axis accelerometer or a combined accelerometer/gyroscope (an inertial measurement unit, or IMU) such as the MPU6050, which reports acceleration on the X, Y, and Z axes so your code can detect a step, a tilt, or a fall.
- A power source — a small battery (a LiPo cell is the usual choice for wearables because of its size-to-capacity ratio) so the device isn't tethered to USB.
- Prototyping hardware — a breadboard, jumper wires, and a resistor assortment, so you can wire and rewire the circuit while you're still testing, before moving to a permanent enclosure.
Why use a small board like the Arduino Nano for wearables?
Wearable projects are constrained by size and power in a way that a desk project isn't. The Arduino Nano is a common choice because its footprint is small enough to fit inside a wristband or badge enclosure, it talks to sensors over I2C with just two data pins (SDA and SCL), and it can be powered directly from a small battery. Compact boards built around the ESP32-C3 are another option in the same size class — they add built-in Wi-Fi and Bluetooth if you eventually want the device to report step counts to a phone, while drawing roughly 80mA and accepting anywhere from 3.3V to 5.5V input, so the same LiPo cell that powers an Arduino-based build will run one of these too. Either way, the deciding factors for a wearable board are the same: small physical size, low current draw, and enough I/O to talk to a motion sensor over I2C or SPI.
How does a motion sensor count steps?
A step counter works by watching the acceleration signal from an IMU like the MPU6050 for a repeating pattern rather than a single spike. Every footstep produces a small, sharp change in acceleration as your arm or wrist moves; a first test program typically compares each new reading against a movement threshold and only registers a step once the signal crosses that threshold, then ignores further readings for a short debounce window (a few hundred milliseconds) so a single footstep isn't counted multiple times as the sensor settles. Tuning that threshold and debounce window to your own arm swing is the first calibration step in any step-counter build, and it's exactly what you'll see in the generated firmware below.
What can you build with a wearable starter kit?
The same core parts — a small controller, a motion sensor, prototyping hardware, and a compact battery — scale into several different wearable projects depending on how you write the firmware: a basic step counter or pedometer, a posture reminder that alerts you when you slouch, a sleep-position tracker that logs whether you're on your back, side, or stomach, or an activity-level band that changes an LED's color based on how much you're moving. Compoden's catalog includes pre-assembled versions of several of these (a Sleep Position Monitor Kit and an Activity Level LED Band Kit among them), built around the same MPU6050-class motion sensor discussed above.
Watch a real starter kit get built live
To show what this actually looks like rather than just describe it, we typed the following into Compoden's storefront build assistant:
"I want to build a simple wearable electronics project, like a step counter. What parts do I need for a starter kit?"

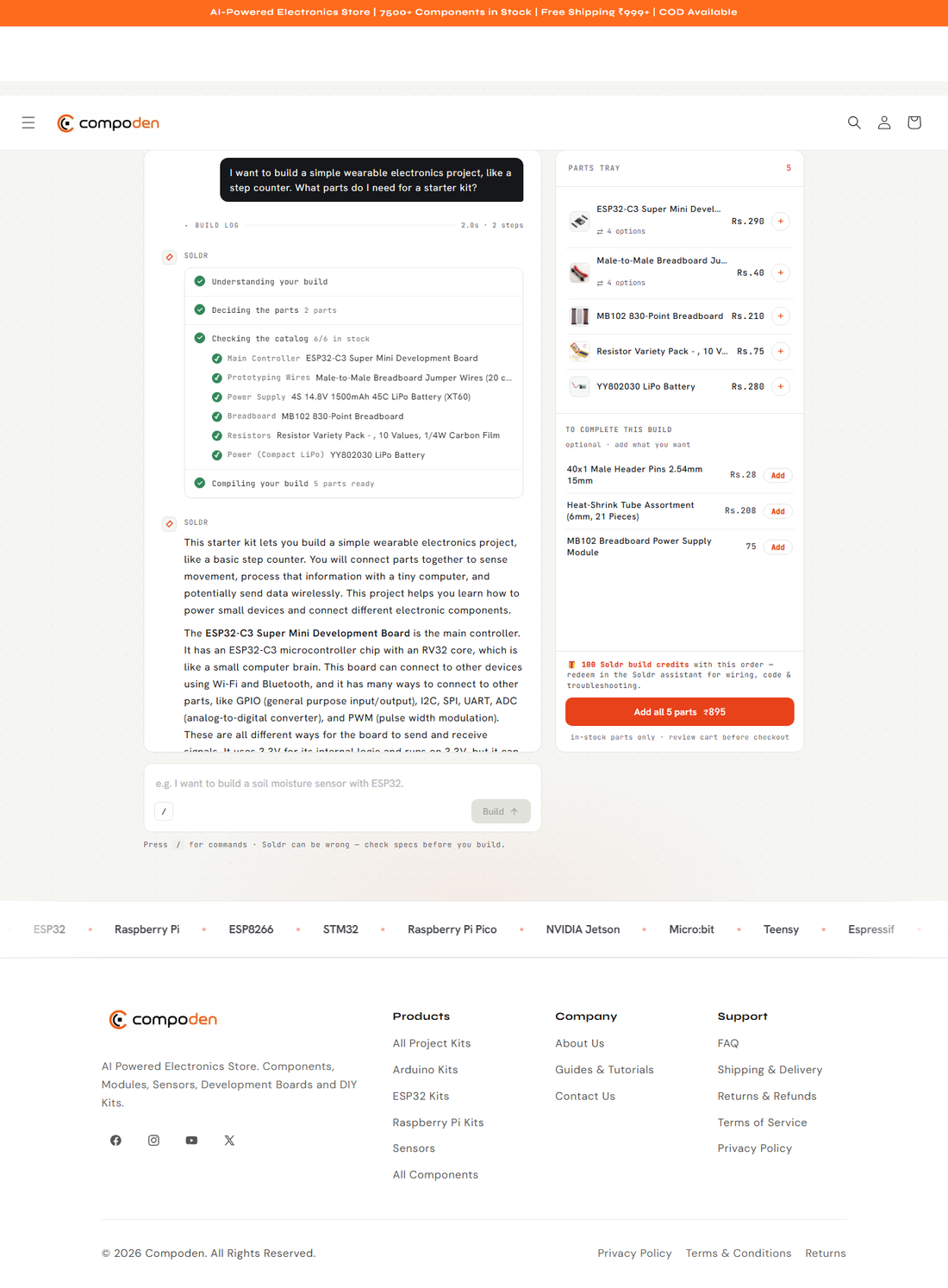

The assistant assembled a five-part tray and explained each choice in plain language. Here is the exchange, captured live:
Quoting the assistant's own reply directly:
"This starter kit lets you build a simple wearable electronics project, like a basic step counter. You will connect parts together to sense movement, process that information with a tiny computer, and potentially send data wirelessly."
"The ESP32-C3 Super Mini Development Board was chosen because it is the lowest-cost part that meets the requirement for a compact, Wi-Fi and Bluetooth enabled microcontroller."
It also flagged a real wiring concern before we asked: "ensuring all components share a common ground connection is crucial for the circuit to function correctly" — the kind of detail that matters once you're wiring a battery, a controller, and a sensor into a small enclosure. Note that this particular live run assembled the general-purpose electronics (controller, breadboard, wires, resistors, battery) but not a dedicated motion-sensor module in the core tray — see the buying table below for how to add one.
Watch the first test program get generated
Next we moved to Compoden's Soldr build tool at voltiq-pwa.pages.dev and asked for actual firmware:
"I just got a wearable tech starter kit with an Arduino Nano and a motion sensor. Write a simple first test program to detect movement and print a step count to the serial monitor."
Soldr matched the request to a fuller parts list — an Arduino Nano R3, an HC-SR501 PIR motion sensor, an MPU6050 3-axis gyro/accelerometer module, a breadboard, jumper wires, a resistor pack, and a LiPo battery — then generated a firmware sketch. The code appeared essentially all at once once the build finished; there was no character-by-character streaming to watch. Here is the Firmware tab as captured:
The generated sketch includes the Adafruit MPU6050 and Adafruit Sensor libraries, wires the sensor over I2C (Nano A4 to MPU6050 SDA, A5 to SCL, 5V to VCC, GND to GND), and implements step detection with a movementThreshold of 1.5 (m/s²) and a 200-millisecond stepDebounceDelay — the same threshold-and-debounce approach described above, just written out as working code. Soldr's own reply was direct about its limits: "this code has not been checked against a board. Your build has parts in it, but no board I can compile for — so I could not verify the pins." That caveat is worth taking seriously — treat generated firmware as a starting point to verify against your actual wiring, not a guarantee.
Who this kit is for
This is a beginner-level build: every part in the storefront tray plugs into a breadboard, no soldering is required, and Compoden lists it as suitable for roughly age 10 and up. It's a reasonable first wearable project if you've already wired a basic LED or sensor circuit and want to move on to something that reads motion and does something with the result.
Get everything in this kit
These are the exact parts and prices from the live storefront build captured above.
| Part | Role | Price | Add to cart |
|---|---|---|---|
| ESP32-C3 Super Mini Development Board | Main controller | ₹290 | Add to cart |
| Male-to-Male Breadboard Jumper Wires (20 cm, 24 AWG) | Prototyping wires | ₹40 | Add to cart |
| MB102 830-Point Breadboard | Breadboard | ₹210 | Add to cart |
| Resistor Variety Pack, 10 Values, 1/4W Carbon Film | Resistors | ₹75 | Add to cart |
| YY802030 LiPo Battery | Compact power | ₹280 | Add to cart |
| Total | ₹895 | Add all 5 to cart | |
Note that this tray covers the controller, prototyping hardware, and power — it does not include a dedicated motion-sensor module. If you'd rather skip sourcing an accelerometer separately, Compoden also sells a pre-built Step Counter Pedometer Kit with Arduino Nano + MPU6050, priced from ₹725 for the clone-board variant, which bundles the motion sensor with the rest of the parts as a single one-click order: add the Step Counter Pedometer Kit to cart.
Built and Backed by Compoden
Every part listed above is pulled live from Compoden's own catalog, with current stock and pricing at the time of writing. Compoden ships from India with the standard storefront delivery and return terms shown at checkout. The build assistant and firmware generator referenced in this article are Compoden's own tools, made available so you can see what a kit produces before you order it.
Frequently asked questions
Do I need to know how to solder to build a wearable step counter?
No. The parts tray shown in this article is entirely breadboard-based — every component plugs in with jumper wires, so no soldering is required for a first prototype.
Can I use an Arduino Nano instead of an ESP32-C3 for this build?
Yes. Both are small enough for a wearable enclosure and both talk to an I2C motion sensor like the MPU6050 the same way. The ESP32-C3 adds built-in Wi-Fi and Bluetooth; the Arduino Nano is simpler if you don't need wireless.
What sensor do I need to actually count steps?
A 3-axis accelerometer or accelerometer/gyroscope module such as the MPU6050. It is not included in the individual-parts tray above, but it is bundled in Compoden's pre-built Step Counter Pedometer Kit.
How accurate is a DIY step counter like this?
Accuracy depends on how the movement threshold and debounce timing in the firmware are tuned to your own arm swing and walking pace; a first test program is a starting point for calibration, not a finished, validated pedometer.
