MPU-9250 Explained: What 9-Axis Motion Tracking Means, and How to Wire It to an Arduino Uno
The MPU-9250 is a nine-axis motion tracking module that combines a 3-axis accelerometer, a 3-axis gyroscope, and a 3-axis magnetometer (a separate AK8963 chip on the same board) on one breakout. It communicates over I²C at address 0x68 (or 0x69 with AD0 pulled high), or over SPI, runs its own logic at 3.3V, and is commonly powered from 3.3–5V through the breakout board's regulator — which is why it works on both a 5V Arduino Uno and a 3.3V ESP32. The magnetometer is the feature that separates it from the plain MPU-6050: it gives the module an absolute compass heading, so a full sensor-fusion algorithm can output drift-free yaw in addition to pitch and roll.
What does the MPU-9250 measure?
| Output | What it measures | Selectable ranges |
|---|---|---|
| Accelerometer | Linear acceleration on X/Y/Z, in g | ±2 / ±4 / ±8 / ±16 g |
| Gyroscope | Angular rate around X/Y/Z, in °/s | ±250 / ±500 / ±1000 / ±2000 °/s |
| Magnetometer (AK8963) | Magnetic field strength on X/Y/Z, in µT — used as a compass reference | roughly ±4800 µT |
The accelerometer and gyroscope are the same MEMS building blocks used in the MPU-6050 — this is effectively an MPU-6050 with a magnetometer added on the same die-stack. The magnetometer is accessed either directly over its own I²C address or, on most breakout boards, through a bypass/pass-through mode exposed by the main MPU-9250 registers, so your microcontroller still only needs one I²C bus.
Why does the MPU-9250 need a magnetometer if it already has a gyroscope?
An accelerometer and gyroscope together (a 6-axis IMU, like the plain MPU-6050) can determine pitch and roll — how much the board is tilted forward/back and side to side — quite accurately, because gravity gives a fixed reference to measure against. What they cannot determine on their own is yaw: which way the board is pointing relative to north. Yaw has no gravity-like reference to anchor it, so a 6-axis fusion has to get it by integrating the gyroscope's rotation rate over time, and any small bias in that integration accumulates into steady drift — a quadcopter that thinks it's facing north when it's actually drifted 30° off, purely from integration error.
The magnetometer solves this the same way a compass does: it measures the Earth's magnetic field directly, giving an absolute heading that doesn't drift with time. Combine all three sensors — accelerometer for tilt, gyroscope for smooth short-term rotation, magnetometer for absolute heading — and a 9-axis fusion algorithm can output a complete, drift-free 3D orientation, which is the actual reason 9-axis IMUs exist instead of just running 6-axis ones with a better filter.
How do you wire the MPU-9250 to an Arduino Uno?
| Arduino Uno | MPU-9250 | Signal |
|---|---|---|
| 5V | VCC | power |
| GND | GND | ground |
| A4 | SDA | I²C |
| A5 | SCL | I²C |
Four wires, same as the MPU-6050 — the magnetometer doesn't need extra pins because it rides on the same I²C bus through the pass-through mode mentioned above. Leave AD0 unconnected for the default address 0x68 unless you're running two units on one bus, in which case pulling one AD0 high moves it to 0x69. If you're wiring to a 3.3V board like an ESP32 instead, use the 3.3V pin rather than 5V; either way the wiring pattern (power, ground, SDA, SCL) stays identical.
MPU-9250 vs MPU-6050 — what's the difference?
The accelerometer and gyroscope specs are essentially the same part. The difference is the AK8963 magnetometer soldered onto the MPU-9250 board, and what that unlocks: the MPU-6050 gives you accurate tilt (pitch/roll) but a yaw reading that drifts over time with no way to correct it, while the MPU-9250 gives you a genuine absolute heading. For a self-balancing robot or a tilt-only gesture project, the extra chip is unnecessary cost. For a drone flight controller, a robot that needs to hold a compass bearing, a gimbal, or VR/AR head tracking, the magnetometer is the whole point — it's the difference between "roughly facing a direction" and "actually knowing which direction."
Watch it built live: a real Arduino Uno + MPU-9250 project

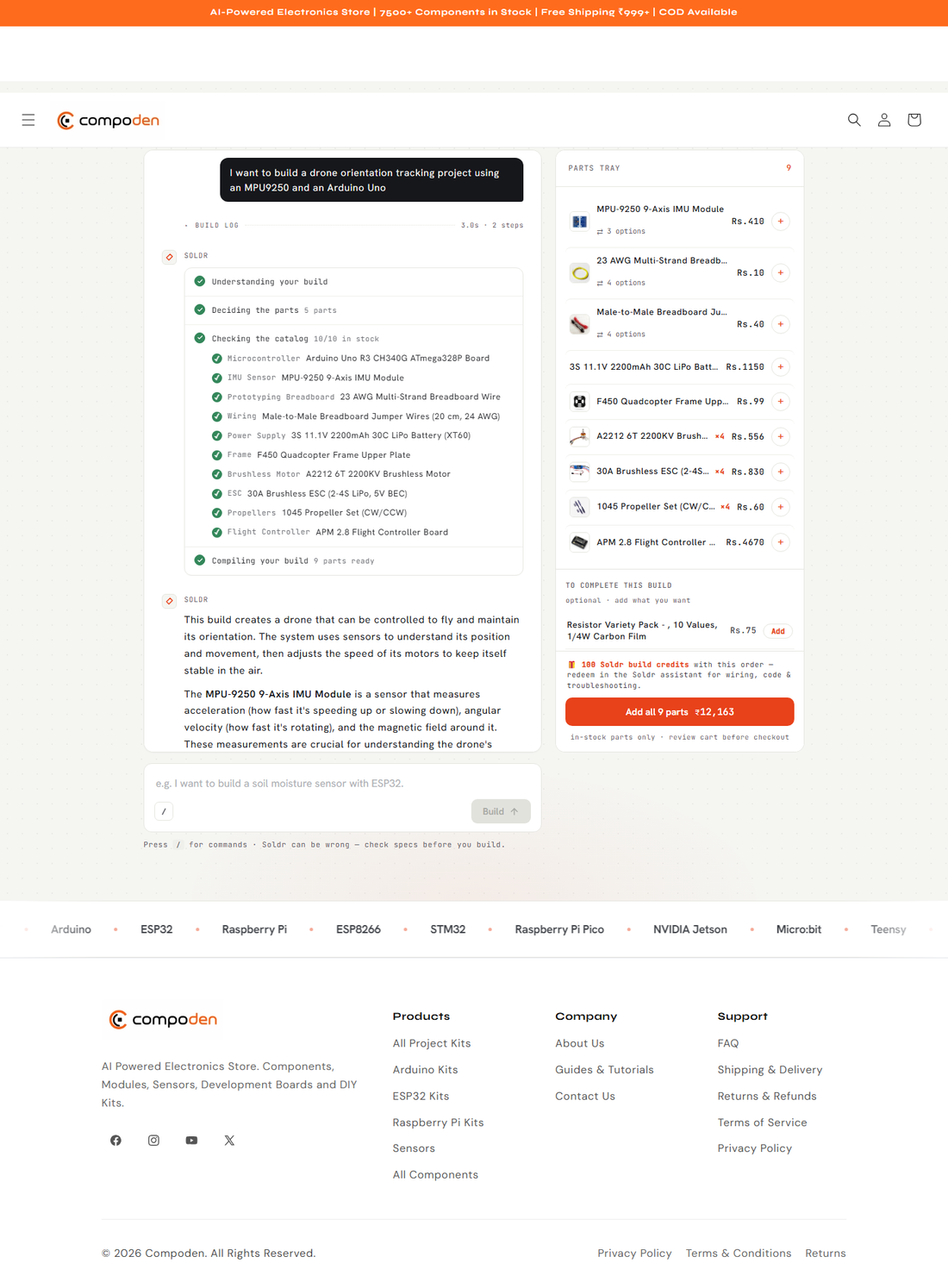

Rather than describe a generic build, we typed one real sentence into Compoden's AI build assistant on the storefront and let it do the part-picking, pricing, and explaining — unscripted, screenshotted as it happened:
"I want to build a drone orientation tracking project using an MPU9250 and an Arduino Uno."
Because the prompt named a drone rather than a simple sensor demo, the assistant scoped an entire quadcopter build — nine parts, from the MPU-9250 itself down to motors, ESCs, a frame, and a LiPo battery — and made a call worth noting: it dropped the plain Arduino Uno from the tray and substituted an APM 2.8 flight controller instead, reasoning that "a quad is flown by a flight controller, not a microcontroller." It explained the MPU-9250's role plainly: it measures acceleration, angular velocity, and the surrounding magnetic field, communicates over I²C or SPI, and needs to be calibrated before its readings are meaningful.
Watch the firmware get generated
We then asked Compoden's build companion, Soldr, for the same sensor in a plainer, non-drone framing — asking it to write the actual Arduino sketch targeting an Uno directly:
"I want to build an orientation-tracking project using an MPU9250 and an Arduino Uno. Write the full Arduino firmware to read accelerometer, gyroscope and magnetometer values over I2C and print them to the serial monitor."
This time the parts list matched a plain Arduino Uno build — Arduino Uno R3, the MPU-9250 module, jumper wires, breadboard wire, and a 5V 2A power adapter. The generated sketch pulls in Wire.h and the MPU9250 library by Bolder Flight Systems, defines the I²C address as 0x68 with a comment noting 0x69 if AD0 is pulled high, and initializes I²C with a comment pointing at the Uno's A4 (SDA) and A5 (SCL) pins — matching the wiring table above exactly. Soldr also flagged, in plain text before the code, two wiring/pin mismatches it hadn't resolved yet and said the sketch wouldn't compile as-is until the board target and pin assignment were confirmed — a self-review step worth seeing, since it means the tool checks its own generated wiring against its own generated code rather than shipping both silently.
So what is the MPU-9250 actually good for?
Anything that needs a complete, drift-free sense of orientation rather than just tilt: drone and quadcopter flight controllers that need to hold a compass heading, robots that need absolute direction rather than relative turning, camera gimbal stabilization, and VR/AR head tracking. If a project only needs to know how something is tilting, the plain MPU-6050 is enough and cheaper; the MPU-9250 earns its keep the moment "which way am I facing" matters.
