Red 0.56inch 1 Digit 7 Segment LED Display Digital Tube - Common Cathode
Red 0.56inch 1 Digit 7 Segment LED Display Digital Tube - Common Cathode

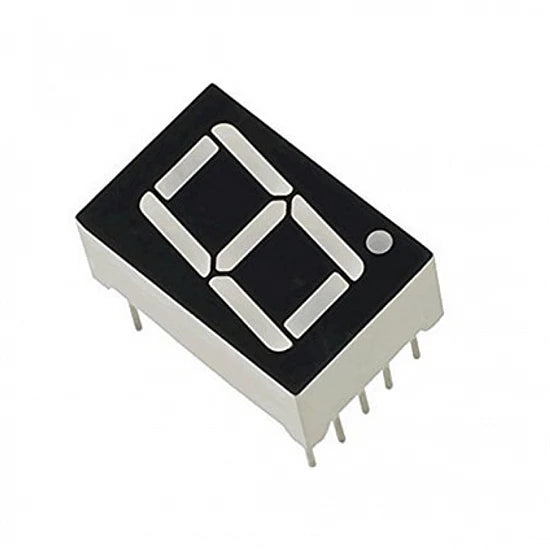

A single-digit 0.56 inch red 7-segment LED display in common cathode configuration. It is a passive display with no onboard driver and requires external current-limiting resistors and microcontroller drive.
Specifications
- 1 digit
- 0.56 inch digit height
- red LED
- common cathode
- 10 pins
- DIP through-hole mount
- dimensions 19mm L x 13mm W x 7mm H
Compatible with
- Arduino
- Raspberry Pi
- any microcontroller GPIO with current-limiting resistors
- breadboard and PCB
Build it with Compoden's AI
Tell Compoden's AI build assistant what you want to display and it picks a compatible screen, checks it against your board's interface and voltage, and hands you the wiring and the driver code matched to the exact module - all from real in-stock parts.
Built and Backed by Compoden
We have spent 10 years supplying displays, boards, and parts to makers, schools, and engineering teams across India. Every Compoden order includes our AI build companion to help you wire the screen and write the driver code.
Is there a driver chip on board?
No, this is a bare common-cathode 7-segment display; each segment must be driven through its own current-limiting resistor.
Common cathode or common anode?
Common cathode, so the shared pin connects to ground and segments are driven high.
How many pins does it have?
10 pins in a DIP through-hole layout.
