Red 0.56inch 3 Digit 7 Segment LED Display Digital Tube - Common Cathode

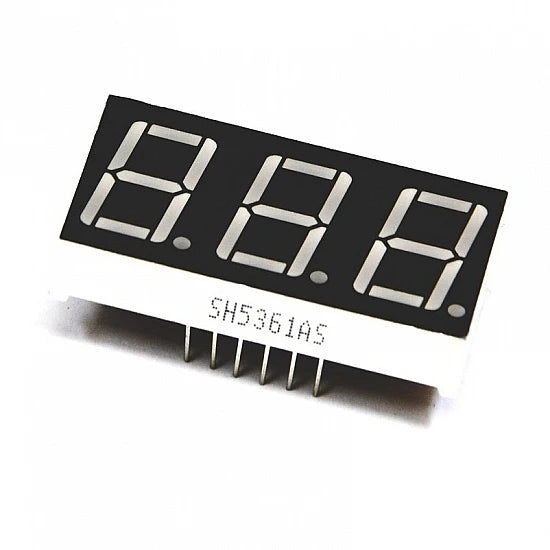

A three-digit 0.56 inch red 7-segment LED display in common cathode configuration. It is a passive multiplexed display with no onboard driver and needs external resistors plus microcontroller scanning.
Specifications
- 3 digits
- 0.56 inch digit height
- red LED
- common cathode
- 12 pins
- PCB / through-hole mount
- dimensions 37mm L x 19mm W x 7mm H
Compatible with
- Arduino
- Raspberry Pi
- any microcontroller GPIO with current-limiting resistors
- breadboard and PCB
Build it with Compoden's AI
Tell Compoden's AI build assistant what you want to display and it picks a compatible screen, checks it against your board's interface and voltage, and hands you the wiring and the driver code matched to the exact module - all from real in-stock parts.
Built and Backed by Compoden
We have spent 10 years supplying displays, boards, and parts to makers, schools, and engineering teams across India. Every Compoden order includes our AI build companion to help you wire the screen and write the driver code.
Is a driver chip included?
No, it is a bare common-cathode 7-segment display driven directly by your microcontroller with current-limiting resistors.
Common cathode or anode?
Common cathode.
How many pins does it have?
12 pins.
Ask Soldr above what you can build with this — it knows every Compoden kit this part appears in.
