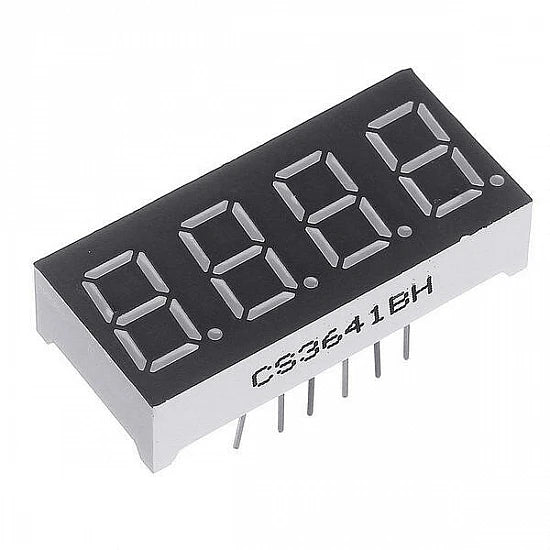

Red 0.56inch 4 Digit 7 Segment LED Display Digital Tube - Common Anode
Red 0.56inch 4 Digit 7 Segment LED Display Digital Tube - Common Anode
A four-digit 0.56 inch red 7-segment LED display in common anode configuration. It is a passive multiplexed display with no onboard driver and requires external resistors and microcontroller scanning.
Specifications
- 4 digits
- 0.56 inch digit height
- red LED
- common anode
- 12 pins
- DIP through-hole mount
- dimensions 51mm L x 19mm W x 7mm H
Compatible with
- Arduino
- Raspberry Pi
- any microcontroller GPIO with current-limiting resistors
- breadboard and PCB
Build it with Compoden's AI
Tell Compoden's AI build assistant what you want to display and it picks a compatible screen, checks it against your board's interface and voltage, and hands you the wiring and the driver code matched to the exact module - all from real in-stock parts.
Built and Backed by Compoden
We have spent 10 years supplying displays, boards, and parts to makers, schools, and engineering teams across India. Every Compoden order includes our AI build companion to help you wire the screen and write the driver code.
Does it have a driver IC?
No, it is a bare 7-segment display; the four digits are multiplexed and driven by your microcontroller.
Is it common anode or cathode?
Common anode, so the shared digit pins connect to the positive supply and segments are pulled low.
How many pins?
12 pins in a DIP through-hole layout.
