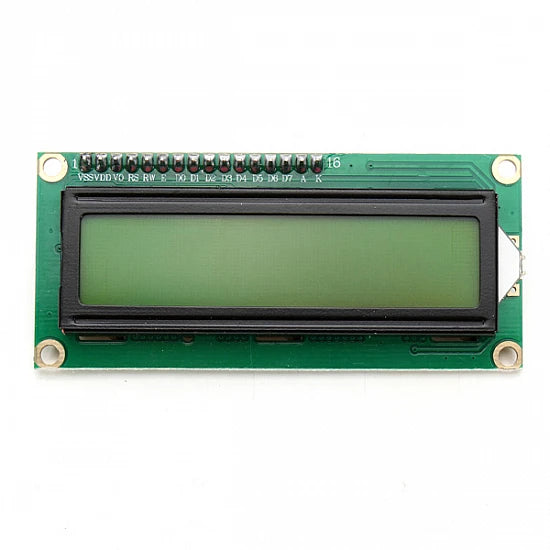

1602 16x2 Character LCD Display Module (Green Backlight)
1602 16x2 Character LCD Display Module (Green Backlight)
A standard 16-character by 2-line character LCD with a green backlight, driven over a 4-bit or 8-bit parallel interface. It is the classic HD44780-compatible 1602 module used for basic text output in microcontroller projects.
Specifications
- 16 characters x 2 lines
- Green backlight, black characters
- 5V input
- 4-bit or 8-bit parallel MPU interface
- 80x8-bit display RAM
- Dimensions 8 x 3.6 x 1 cm
Compatible with
- Arduino
- Most microcontrollers
- 4-bit and 8-bit parallel control
- Works with I2C backpack (sold separately)
Build it with Compoden's AI
Tell Compoden's AI build assistant what you want to display and it picks a compatible screen, checks it against your board's interface and voltage, and hands you the wiring and the driver code matched to the exact module - all from real in-stock parts.
Built and Backed by Compoden
We have spent 10 years supplying displays, boards, and parts to makers, schools, and engineering teams across India. Every Compoden order includes our AI build companion to help you wire the screen and write the driver code.
How many pins does it need?
It uses a 4-bit or 8-bit parallel interface; 4-bit mode needs about 6 control lines, or you can add an I2C backpack to reduce it to 2.
What controller does it use?
It is HD44780-compatible, the standard 1602 character LCD controller.
What supply voltage?
5V.
