1.8 Inch SPI TFT LCD Display Module 128x160 for Arduino

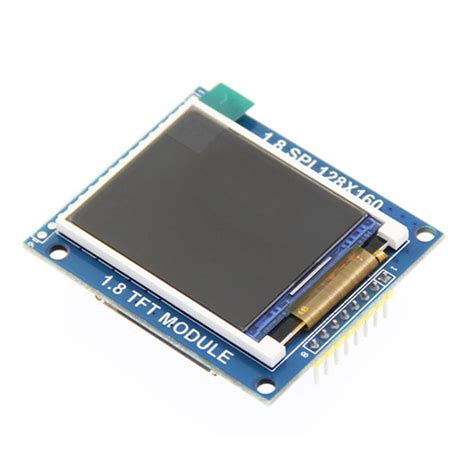

1.8 Inch SPI 128x160 TFT LCD Display Module With PCB for Arduino
This 1.8-inch TFT LCD display module offers 128x160 pixel resolution and a standard SPI interface, making it easy to add a vibrant color screen to your microcontroller projects. It's widely used for creating user interfaces, game screens, and data dashboards. The onboard PCB includes a microSD card slot and backlight control, simplifying connections.
Key Specifications
| Specification | Value |
|---|---|
| Display Size | 1.8 inch diagonal |
| Resolution | 128 (H) x 160 (V) pixels |
| Driver IC | ST7735S |
| Interface | 4-wire SPI |
| Operating Voltage | 3.3V (5V tolerant via onboard regulator) |
| Onboard Features | MicroSD card slot, backlight control pin |
What You Can Build With This
- Digital photo frame showing BMP images from the SD card
- Retro handheld game console with joystick and buttons
- Real-time weather station display fetching data over Wi-Fi
- Menu-driven interface for home automation control panels
Compatibility
Works with any board supporting SPI: Arduino Uno, Mega, Nano (3.3V logic), ESP8266, ESP32, Raspberry Pi Pico, and STM32. Libraries like Adafruit ST7735 and TFT_eSPI provide easy drawing functions. The 3.3V regulator allows safe power from 5V USB, but logic pins are 3.3V—use a level shifter if your MCU outputs 5V.
Wiring Notes
Connect VCC to 3.3V, GND to ground. SPI pins: SCL (SCK), SDA (MOSI), RES (reset), DC (data/command), CS (chip select), and BL (backlight). On Arduino Uno, common wiring maps to pin 13 (SCK), 11 (MOSI), 9 (CS), 8 (DC), 10 (SD CS if using SD). The backlight draws ~20mA; total module current is under 50mA. Use a 100Ω resistor on BL pin if not PWM-controlled.
Why Buy from Compoden
Every component is sourced from verified suppliers and tested for compatibility before listing. We've spent 10 years building projects for makers, schools, and institutions across India. Ships from Bengaluru in 3-5 days. If defective on arrival, replace within 7 days.
Is this compatible with Arduino Uno?
Yes, the SPI interface works with Uno using the hardware SPI pins and digital pins for control. Use the Adafruit ST7735 library for easy setup.
