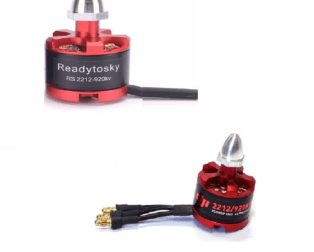

2212 920KV Brushless DC Motor for DJI Silver Cap (CCW Motor Rotation)

The 2212 920KV Brushless DC Motor is a compact, high-performance outrunner motor designed for multirotor drones and RC aircraft. This CCW (counter-clockwise) rotation variant, compatible with DJI Silver Cap propellers, is ideal for builders and hobbyists seeking a reliable motor for 250–450mm frames.

Specifications

• KV Rating: 920 RPM/V
• Motor Configuration: 12N14P (12 stator poles, 14 magnets)
• Stator Diameter: 22mm
• Stator Height: 12mm
• Motor Weight: Approx. 52g
• Shaft Diameter: 3.17mm
• Recommended ESC: 30A
• Propeller Mount: DJI Silver Cap compatible
• Rotation: CCW (Counter-Clockwise)

Compatible with

• Arduino flight controllers (e.g., ArduPilot, Pixhawk)
• ESP32 and ESP8266-based drone controllers
• Raspberry Pi flight stacks
• STM32-based flight controllers
• Standard 30A ESCs (e.g., SimonK, BLHeli)

What you can build with it

• A 450mm quadcopter for aerial photography or FPV racing
• A custom tricopter or hexacopter for payload delivery experiments
• A motor test stand to measure thrust and efficiency for drone design

Built and Backed by Compoden

Every motor purchase includes access to our AI build companion, delivered via QR code, email, or WhatsApp, to help you wire and program this motor into a working drone project. With 10 years of experience supplying makers and institutions across India, we ensure you get the right part for your build. Pay your way: UPI, cards, or Cash on Delivery, anywhere in India.

What payment options are available for the 2212 920KV Brushless DC Motor?

You can pay using UPI, credit/debit cards, or Cash on Delivery (COD). All payment methods are available across India.

How long does delivery take?

We ship the 2212 920KV Brushless DC Motor across India including Delhi, Mumbai, Bangalore, Hyderabad, Chennai, and Pune. Typical delivery takes 3–7 business days depending on your location.

Is this motor compatible with a 30A ESC?

Yes, this motor is designed to work with a 30A ESC. Ensure your ESC supports the motor's 3S–4S LiPo voltage range for optimal performance.
