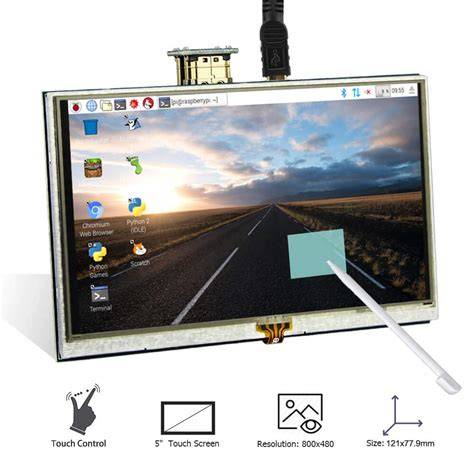

5 Inch HDMI Touch LCD for Raspberry Pi - 800x480 Display
5 Inch HDMI Touch LCD Display for Raspberry Pi - 800x480
This 5-inch HDMI touch LCD is a compact display solution for Raspberry Pi boards. It provides crisp 800x480 resolution output via HDMI and responds to touch input through USB. Ideal for building portable projects, kiosks, or embedded interfaces where direct display and touch interaction are needed.
Key Specifications
| Specification | Value |
|---|---|
| Screen Size | 5 inches (diagonal) |
| Resolution | 800 x 480 pixels |
| Display Interface | HDMI |
| Touch Interface | USB (capacitive touch) |
| Viewing Angle | 160° (typical) |
| Power Input | 5V via GPIO or USB |
What You Can Build With This
- Portable Raspberry Pi tablet or handheld gaming console
- Smart home control panel with touch interface
- Compact desktop monitor for system stats or Pi status
- Interactive kiosk or digital photo frame
Compatibility
This display is compatible with all Raspberry Pi models that feature an HDMI port, including Pi 4, Pi 3, Pi 2, and Pi Zero (with mini-HDMI adapter). It also works with other single-board computers or devices that support HDMI output and USB touch input. The standard HDMI and USB connections make it plug-and-play on most Linux-based systems with the appropriate drivers.
Wiring Notes
Connect the HDMI cable from the display to your Raspberry Pi's HDMI port. Plug the USB cable from the display into one of the Pi's USB ports for touch. If the display includes power pins, you can power it via the Pi's 5V and GND GPIO pins, or use a separate micro USB power input. Ensure the Pi provides sufficient current; a 2.5A power supply is recommended for the Pi plus display.
Why Buy from Compoden
Every component is sourced from verified suppliers and tested for compatibility before listing. We've spent 10 years building projects for makers, schools, and institutions across India. Ships from Bengaluru in 3-5 days. If defective on arrival, replace within 7 days.
Is this compatible with Raspberry Pi 5?
Yes, it works with Raspberry Pi 5’s HDMI output. Touch is via USB, compatible with all Pi models.
Does it require separate drivers?
Most Raspberry Pi operating systems like Raspberry Pi OS detect the touchscreen automatically. You may need to calibrate it using built-in tools for precise touch alignment.
Can I use this as a second monitor for my computer?
Yes, it can function as an external HDMI monitor, but touch input requires a USB connection and compatible drivers on your computer.
