5V 10A SMPS
Use this 5V high-current SMPS for the loads a USB adapter cannot feed — P10 LED matrix panels, addressable LED runs (WS2812B strips get hungry fast), Raspberry Pi clusters, and multi-device 5V rails. Commonly used for scrolling LED display boards and long NeoPixel installations. Not suitable for beginners: the input terminals carry mains voltage. Wire the AC side with the cover on, earth the case, and inject power at both ends of long LED runs to avoid voltage sag. Key specs: 230V AC in, 5V DC out, 10A max, screw terminals, metal chassis. Alternative: the 5V 3A USB-C adapter for single-board loads.

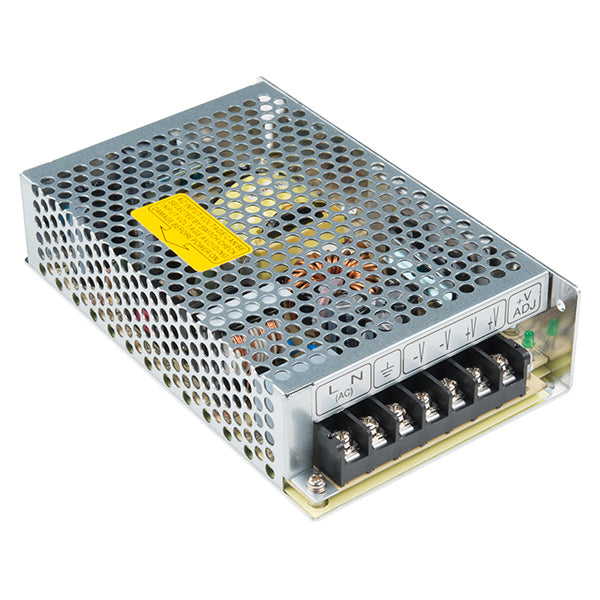

Representative photo of this enclosure style: SparkFun Electronics, CC BY 2.0, via Wikimedia Commons.
Ask Soldr above what you can build with this — it knows every Compoden kit this part appears in.
