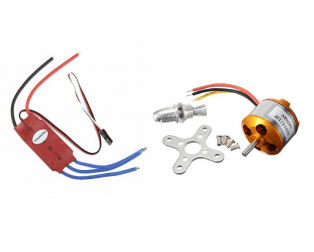

A2212 13T 1400KV Brushless Motor and SimonK 30A ESC

This A2212 13T 1400KV brushless motor paired with a SimonK 30A ESC is a reliable power combo for drones, quadcopters, and RC planes. Designed for makers and hobbyists, it delivers smooth throttle response and lightweight performance for building or repairing multirotor aircraft.

Specifications

• Motor KV rating: 1400KV
• Motor configuration: 12N14P (12 stator poles, 14 magnets)
• Max current: 12A (motor), 30A (ESC)
• ESC firmware: SimonK (pre-flashed)
• Motor dimensions: 28mm diameter x 24mm length (stator)
• ESC input voltage: 2S–4S LiPo (7.4V–14.8V)
• Motor shaft diameter: 3.17mm
• Weight: ~47g (motor), ~25g (ESC)
• Connector: 3.5mm bullet (motor), XT60 power (ESC)

Compatible with

• Arduino (Uno, Nano, Mega) with flight controller boards
• ESP32 and ESP8266 for custom drone projects
• Raspberry Pi (via PWM or servo hat)
• STM32-based flight controllers (e.g., F4, F7)
• Standard RC receivers (PWM input)

What you can build with it

• 250mm–450mm quadcopter or hexacopter frames
• Fixed-wing RC planes and foam board trainers
• Custom drone for FPV racing or aerial photography
