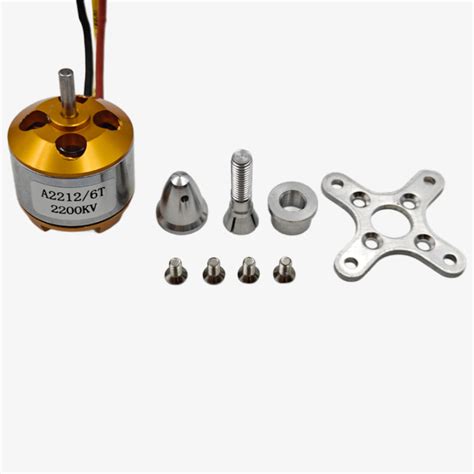

A2212/6T 2200kV BLDC Drone Motor for Quadcopters
A2212/6T 2200kV BLDC Drone Motor
The A2212/6T is a 2200kV brushless DC motor engineered for mini quadcopters and racing drones. Its high RPM per volt delivers fast throttle response with 5-inch propellers and 3-4S LiPo batteries, making it a go‑to for lightweight, agile builds.
Key Specifications
| Specification | Value |
|---|---|
| KV Rating (RPM/V) | 2200 |
| Max Current (A) | 12 |
| Shaft Diameter (mm) | 3.17 |
| Weight (g) | 50 |
| Recommended Prop Size | 5‑6 inch |
What You Can Build With This
- 250‑size mini racing quadcopter
- FPV freestyle build with 5‑inch props
- Lightweight 3D‑printed quadcopter frame
- High‑speed line‑of‑sight acro drone
Compatibility
Pairs with 30A ESCs and standard flight controllers like Betaflight. The 16x19mm mounting pattern suits most 220‑250mm carbon fibre frames. Runs on 2‑4S LiPo; always match ESC amp rating to battery cell count.
Wiring Notes
Solder the three motor leads to the ESC output pads in any order. Swap any two wires to reverse rotation. Keep ESC signal ground connected and use a 30A‑rated ESC to avoid overheating at full throttle.
Why Buy from Compoden
Every component is sourced from verified suppliers and tested for compatibility before listing. We've spent 10 years building projects for makers, schools, and institutions across India. Ships from Bengaluru in 3-5 days. If defective on arrival, replace within 7 days.
Is this compatible with 5‑inch three‑blade props?
Yes, the 2200kV motor is optimized for 5‑inch two‑ or three‑blade props on 3‑4S, producing ample thrust without overheating.
Can I use a 4S battery with this motor?
4S is supported, but ensure your ESC is rated for 30A or more and monitor motor temperature during the first flights.
What mounting screws are included?
The motor includes a prop adapter; M3 mounting screws for the frame are provided. Verify frame thickness to choose appropriate screw length.
