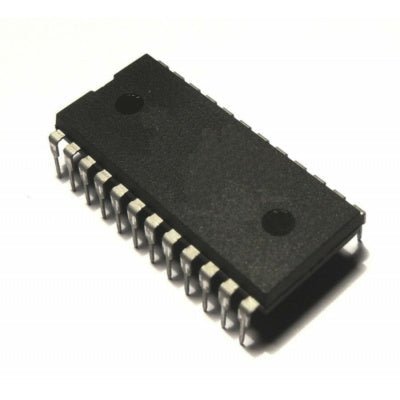

CD4059 Programmable Divide-by-N Counter IC DIP-24 Package
CD4059 Programmable Divide-by-N Counter IC DIP-24 Package
The CD4059 is a programmable divide-by-N counter IC in a standard DIP-24 package. It allows you to set any division ratio from 3 to 15,999, making it suitable for frequency division, timing, and sequencing applications in digital circuits.
Specifications
- Supply voltage: 3V to 15V DC
- Programmable division ratio: 3 to 15,999
- Package: 24-pin DIP (Dual Inline Package)
- Logic family: CMOS
- Operating temperature: -55°C to +125°C
- Output: TTL/CMOS compatible
Compatible with
- Arduino (Uno, Mega, Nano)
- ESP32 and ESP8266
- Raspberry Pi (via GPIO)
- STM32 microcontrollers
- Standard breadboards and prototyping boards
What you can build with it
- Programmable frequency divider for clock signals
- Event counter for industrial timing applications
- Sequential timer for lighting or automation projects
Built and Backed by Compoden
Every CD4059 IC you order includes access to our AI build companion, delivered via QR code, email, or WhatsApp, to help you wire and program it into a working project. With 10 years of experience supplying makers and institutions across India, we ensure reliable components and practical support. Pay your way: UPI, cards, or Cash on Delivery, anywhere in India.
What is the maximum division ratio of the CD4059?
The CD4059 can be programmed to divide by any number from 3 to 15,999.
What payment options are available for CD4059 Programmable Divide-by-N Counter IC?
You can pay via UPI, debit/credit cards, or Cash on Delivery (COD), available across India.
How do I set the division ratio on this IC?
The division ratio is set by applying a binary code to the jam inputs (J1–J16). Refer to the datasheet for the exact pin mapping and programming table.
How long does delivery take?
We ship CD4059 Programmable Divide-by-N Counter IC across India including Delhi, Mumbai, Bangalore, Hyderabad, Chennai, and Pune. Delivery typically takes 3–7 business days.
Ask Soldr above what you can build with this — it knows every Compoden kit this part appears in.
