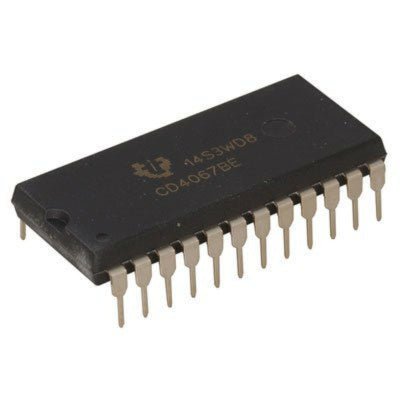

CD4067 16-Channel Analog Multiplexer/Demultiplexer IC DIP-24 Package Product Code: EC-0532
CD4067 16-Channel Analog Multiplexer/Demultiplexer IC DIP-24
The CD4067 is a 16-channel analog multiplexer/demultiplexer IC in a DIP-24 package. It allows you to route one of sixteen analog or digital signals to a common output, making it essential for expanding sensor inputs on microcontrollers.
Specifications
- Number of channels: 16 (single-ended)
- Logic level: CMOS compatible (3V to 15V supply)
- Supply voltage range: 3V to 15V DC
- On-resistance: typically 400 ohms at 10V supply
- Package: DIP-24
- Control: 4 binary address lines (A0–A3) + enable pin
Compatible with
- Arduino (Uno, Mega, Nano, etc.)
- ESP32 and ESP8266
- Raspberry Pi (via GPIO)
- STM32 and other 3.3V/5V microcontrollers
What you can build with it
- Expand analog sensor inputs on a single ADC pin (e.g., 16 temperature sensors)
- Build a multi-channel data logger for environmental monitoring
- Create an analog signal routing matrix for audio or test equipment
Built and Backed by Compoden
Every CD4067 IC you buy from Compoden comes with access to an AI build companion — delivered via QR, email, or WhatsApp — that helps you wire and program this part into a working project. With 10 years of experience supplying makers and institutions across India, we ensure reliable components and practical support. Pay your way: UPI, cards, or Cash on Delivery, anywhere in India.
What is the CD4067 used for?
The CD4067 is a 16-channel analog multiplexer/demultiplexer. It lets you select one of 16 analog or digital inputs to a single output using 4 control pins, ideal for expanding sensor inputs on microcontrollers.
What payment options are available for the CD4067?
You can pay via UPI, debit/credit cards, or Cash on Delivery (COD). All payment methods are available across India.
How long does delivery take?
We ship the CD4067 across India including Delhi, Mumbai, Bangalore, Hyderabad, Chennai, and Pune. Delivery typically takes 3–7 business days depending on your location.
Buy CD4067 16-Channel Analog Multiplexer IC DIP-24 online in India from Compoden — with COD and UPI available across India.
Ask Soldr above what you can build with this — it knows every Compoden kit this part appears in.
Shipping Information
- Prepaid Orders: ₹75 for orders up to ₹999, FREE shipping above ₹999
- COD Orders: ₹125 shipping + ₹50 COD fee = ₹175 total
- Delivery Timeline: Dispatch in 1-2 days, delivery in 2-7 days depending on location
Returns & Warranty
- 7-Day Return: Manufacturing defects only (approval required)
- Warranty: 7 days from delivery
- Non-Returnable: Batteries, consumables, cut wires, clearance items
