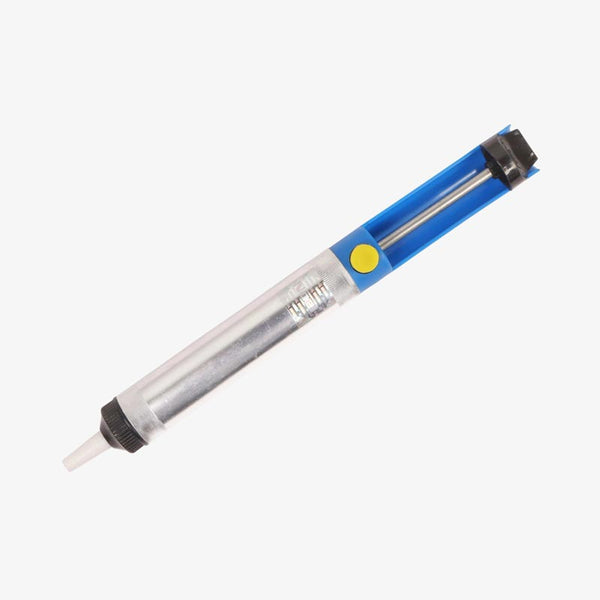

Desoldering Pump – Solder Sucker for PCB Component Removal
Aluminium Desoldering Pump – Solder Sucker for PCB Component Removal
This high-suction aluminium desoldering pump, also called a solder sucker, allows fast and clean removal of solder from PCB through-hole components, essential for Arduino, ESP32, Raspberry Pi repair and prototyping.
Key Specifications
| Body Material | Aluminium Alloy |
|---|---|
| Suction | Spring-loaded high-vacuum plunger |
| Length | ~190 mm |
| Tip Material | Heat-resistant PTFE |
| Nozzle Inner Dia. | 1.5 mm |
| Nozzle Outer Dia. | 3.0 mm |
| Weight | ~80 g |
What You Can Build With This
- Arduino LED Blink Repair: Quickly desolder a wrongly placed LED or resistor on a perfboard to correct your starter project.
- ESP32 IoT Sensor Node: Salvage a DHT11 sensor from an old module by desoldering it for reuse in an ESP32-based temperature and humidity monitor.
- Raspberry Pi DIY HAT: Desolder and replace a damaged 40-pin GPIO header on a Raspberry Pi expansion board.
- CBSE Class 12 Physics Practical: Perform desoldering exercises on a general-purpose PCB to learn basic electronics rework techniques.
- B.Tech Mini Project Rework: Remove faulty ICs or connectors from a prototype during a Smart India Hackathon project to iterate quickly.
Compatibility
| Platform | Compatible | Connection | Library / Method |
|---|---|---|---|
| Arduino Uno R3 | Yes | Works on through-hole solder joints | Manual desoldering |
| Arduino Nano | Yes | Works on through-hole solder joints | Manual desoldering |
| Arduino Mega 2560 | Yes | Works on through-hole solder joints | Manual desoldering |
| ESP8266 NodeMCU | Yes | Works on through-hole solder joints | Manual desoldering |
| ESP32 Dev Board | Yes | Works on through-hole solder joints | Manual desoldering |
| Raspberry Pi Pico | Yes | Works on through-hole pads | Manual desoldering |
| Raspberry Pi 4 / 5 | Yes | Works on soldered GPIO headers | Manual desoldering |
Wiring and Interface Notes
To use, press the plunger until it locks, then heat the solder joint with your soldering iron. Place the PTFE nozzle directly over the molten solder and press the release button to suck the solder away. Clean the nozzle with the included unclogging pin after each use to maintain suction efficiency.
Frequently Asked Questions
Does this desoldering pump work with lead-free solder?
Yes, it works with both leaded and lead-free solder as long as the solder is fully molten. For lead-free solder, use a soldering iron at 350‑400 °C.
Can I use this solder sucker for SMD components?
It is designed for through-hole. For SMD, use a hot-air station; careful technique on larger pads may work.
