Elecrow 10.1" IPS 1280x800 Touch Display with Acrylic Case | Compoden

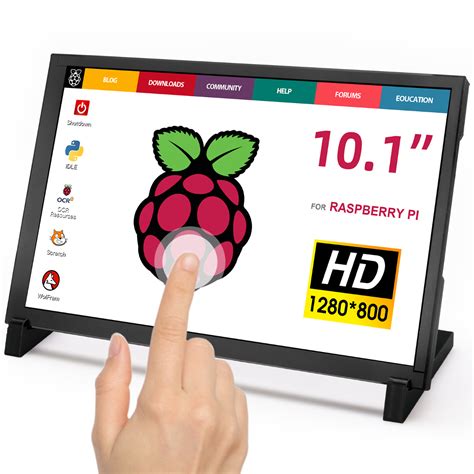

Elecrow 10.1 inch IPS 1280x800 Touchscreen Display Monitor with Acrylic Case
The Elecrow 10.1-inch IPS touchscreen display provides a high-resolution 1280x800 visual interface for single-board computers and embedded systems. Its IPS panel delivers wide viewing angles and accurate colors, while the included acrylic case protects the electronics in desktop or portable builds. This monitor accepts HDMI and VGA inputs, with touch functionality over USB, making it a ready-to-use display module for Raspberry Pi, BeagleBone, and other HDMI-equipped devices.
Key Specifications
| Specification | Value |
|---|---|
| Screen Size | 10.1 inch |
| Resolution | 1280×800 (WXGA) |
| Panel Type | IPS LED-backlit |
| Touch Interface | USB capacitive, 5-point multi-touch |
| Input Ports | HDMI 1.4, VGA, USB for touch, micro USB for power |
| Audio Output | 3.5mm headphone jack |
What You Can Build With This
- Raspberry Pi-powered desktop monitor for coding and browsing
- Portable retro gaming station with RetroPie
- Kitchen smart display for recipes and home automation
- Information kiosk for offices or exhibitions
Compatibility
Compatible with Raspberry Pi 4, 3, and Zero (via mini HDMI adapter), BeagleBone Black, NVIDIA Jetson Nano, and any device with HDMI output. Works with Windows, Linux, and macOS for touch input after driver installation.
Wiring Notes
Connect the HDMI cable from your board to the display, and the USB touch cable to a powered USB port. Power the monitor via the micro USB port (5V/2A adapter recommended). Ensure the USB cable is plugged before booting for touch recognition.
Why Buy from Compoden
Every component is sourced from verified suppliers and tested for compatibility before listing. We've spent 10 years building projects for makers, schools, and institutions across India. Ships from Bengaluru in 3-5 days. If defective on arrival, replace within 7 days.
Is this compatible with Raspberry Pi?
Yes, it works plug-and-play with Raspbian and most Linux distributions. Simply connect HDMI for video and USB for touch input.
Does the acrylic case come pre-assembled?
The display arrives fully mounted inside the acrylic case with cutouts for all ports and mounting tabs, ready for immediate use.
Can I use this monitor without touch with just VGA?
Yes, the VGA input delivers video independently. Touch functionality requires the USB cable to be connected to a host device.
📦 Free Setup Handoff Document Included
Every Compoden order includes a free setup handoff document — step-by-step instructions to get your component working within minutes. Download it via QR code on your package. The handoff document is also trained to help you troubleshoot the majority of problems.
Ask Soldr above what you can build with this — it knows every Compoden kit this part appears in.
