Elecrow RC050 5-inch Capacitive Touch LCD Display for Pi PC PS4

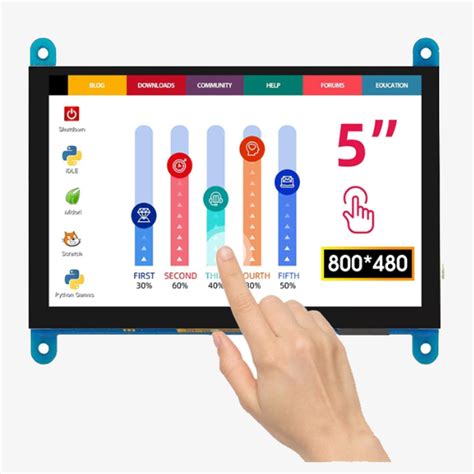

Elecrow RC050 5-Inch Capacitive Touch LCD Display (800×480 HDMI/USB)
The Elecrow RC050 is a 5-inch IPS capacitive touch display with 800×480 resolution. It connects via HDMI for video and USB for touch and power, making it plug-and-play with Raspberry Pi, Windows, Mac, and even PS4. Ideal for building portable touchscreen projects, secondary monitors, or interactive kiosks.
Key Specifications
| Specification | Value |
|---|---|
| Screen Size | 5 inches |
| Resolution | 800×480 pixels |
| Touch Type | Capacitive multi-touch (up to 5 points) |
| Interface | HDMI (video), USB (touch/power) |
| Viewing Angle | IPS, 178° wide viewing angle |
| Power Supply | 5V DC via USB, 1A (2A recommended for full brightness) |
What You Can Build With This
- Portable Raspberry Pi gaming console with touch controls
- Retro gaming station using PS4 as the core system
- Desktop system monitor or information panel for PC stats
- In-car dashboard touchscreen for navigation and media
Compatibility
This display works with any device that has an HDMI output and a USB port. It is fully compatible with all Raspberry Pi models (including Pi 4 and Pi 5) running Raspberry Pi OS, where touch drivers are pre-installed. It also works with Windows, Mac, and Linux computers without additional drivers. For PS4, HDMI video is supported, but touch input is not functional due to lack of driver support.
Wiring Notes
Connect the included HDMI cable for video and the USB cable for both power and touch input. For Raspberry Pi, you can power the display from the Pi's USB port, but ensure your Pi's power supply provides ample current (at least 2.5A) to avoid instability. If using an external USB power source, a standard 5V/1A adapter works; a 2A adapter is recommended for maximum brightness. No GPIO connections are required.
Why Buy from Compoden
Every component is sourced from verified suppliers and tested for compatibility before listing. We've spent 10 years building projects for makers, schools, and institutions across India. Ships from Bengaluru in 3-5 days. If defective on arrival, replace within 7 days.
Is this compatible with Raspberry Pi 4?
Yes, the Elecrow RC050 works with Raspberry Pi 4 and all other 40-pin GPIO Pi models. Simply connect the HDMI and USB cables; touch drivers are included in the latest Raspberry Pi OS.
Does the touch function work with PS4?
The display works as a monitor for PS4 via HDMI, but the capacitive touch input is not supported on PS4 as it lacks touch drivers. You'll need to control via gamepad.
What power supply do I need?
The display can be powered via the included USB cable from any 5V 1A USB port. For higher brightness, a 2A supply is recommended. It also works when powered from the Raspberry Pi’s USB ports, but ensure your Pi’s power source is adequate.
📦 Free Setup Handoff Document Included
Every Compoden order includes a free setup handoff document — step-by-step instructions to get your component working within minutes. Download it via QR code on your package. The handoff document is also trained to help you troubleshoot the majority of problems.
Ask Soldr above what you can build with this — it knows every Compoden kit this part appears in.
