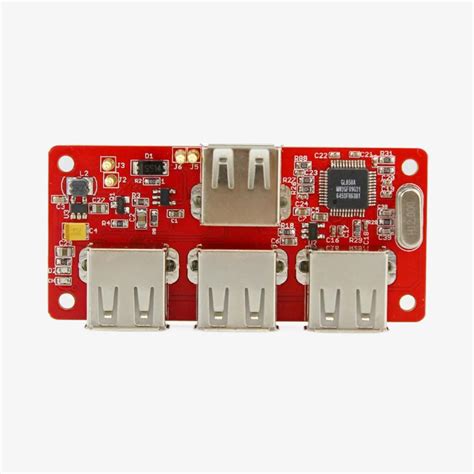

Elecrow USB Hub & Power Manager for Raspberry Pi Zero - 4-Port USB 2.0, 5V
Elecrow USB Hub & Power Manager for Raspberry Pi Zero - 4-Port USB 2.0, 5V Power Module
The Elecrow USB Hub & Power Manager expands your Raspberry Pi Zero with four additional USB 2.0 ports, solving the single micro USB limitation. It also manages power delivery with a dedicated 5V input, ensuring stable operation for connected peripherals. Ideal for IoT gateways, portable servers, and embedded projects where multiple USB devices are needed.
Key Specifications
| Specification | Value |
|---|---|
| USB Ports | 4 × USB 2.0 Type-A |
| Input Power | 5V DC via micro USB (2.5A recommended) |
| Per Port Current | Up to 500mA (total 2A) |
| Back-Power Protection | Yes |
| Dimensions | 65mm × 30mm × 18mm |
| Weight | 15g |
What You Can Build With This
- Compact NAS with multiple USB drives
- Portable retro gaming console with external controllers and storage
- IoT hub with Zigbee/Z-Wave USB dongles and cellular modem
- Multi-camera surveillance system using USB webcams
Compatibility
Designed to connect directly to the Raspberry Pi Zero’s micro USB data port and GPIO header for power. Fully compatible with Raspberry Pi Zero, Zero W, and Zero 2 W boards. Works with Raspberry Pi OS, Ubuntu Core, and other Linux distributions.
Wiring Notes
Align the pogo pins with the Pi Zero’s test pads or GPIO contacts; no soldering required. Connect a 5V power supply (2.5A recommended) to the hub’s micro USB input. Ensure the power switch (if present) is off before connecting the Pi.
Why Buy from Compoden
Every component is sourced from verified suppliers and tested for compatibility before listing. We've spent 10 years building projects for makers, schools, and institutions across India. Ships from Bengaluru in 3-5 days. If defective on arrival, replace within 7 days.
Is this compatible with Raspberry Pi Zero 2 W?
Yes, it is fully compatible with Raspberry Pi Zero 2 W both physically and electrically. The board aligns with the same GPIO layout and micro USB port.
Does it back-power the Pi safely?
Yes, the board includes back-powering protection to prevent damage from simultaneous power sources, making it safe for long-term use.
Can I use USB devices that draw more than 500mA?
The USB ports are limited to standard USB 2.0 500mA output. Devices requiring more current may not function reliably without an external powered hub.
