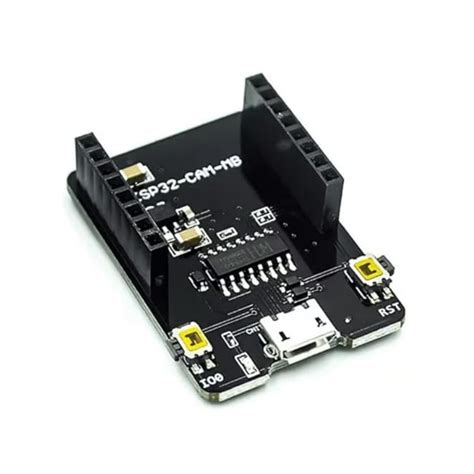

ESP32-CAM-MB Programmer Module with Micro USB – CH340G, Plug & Play
ESP32-CAM-MB Programmer Module with Micro USB – CH340G
The ESP32-CAM-MB is a dedicated USB programming tool for the ESP32-CAM board. It eliminates the need for an external USB-to-UART converter, making firmware uploads quick and reliable. With onboard reset and boot buttons, it simplifies development and debugging.
Key Specifications
| Specification | Value |
|---|---|
| Chipset | CH340G USB-to-UART |
| Input Port | Micro USB (5V) |
| Output Interface | ESP32-CAM header (compatible) |
| Reset Button | Yes |
| Boot Button | Yes (for flash mode) |
| Dimensions | Approx. 50mm x 25mm |
What You Can Build With This
- Home security camera with motion detection
- Wildlife monitoring camera trap
- Face recognition access control system
- Timelapse photography rig
Compatibility
This programmer is designed specifically for the ESP32-CAM development board with matching pin headers. It operates at 5V via micro USB and provides 3.3V logic level signals, making it safe for the ESP32 module. Some compatible boards include AI-Thinker ESP32-CAM, ESP-EYE, and other clones with the same pinout.
Wiring Notes
Simply align the header pins of the ESP32-CAM onto the programmer, ensuring the reset button faces outward. No external wiring needed; the board stacks directly. For first-time flashing, hold the boot button while connecting USB, then release.
Why Buy from Compoden
Every component is sourced from verified suppliers and tested for compatibility before listing. We've spent 10 years building projects for makers, schools, and institutions across India. Ships from Bengaluru in 3-5 days. If defective on arrival, replace within 7 days.
Is this compatible with Arduino IDE?
Yes, the CH340G chip works with Arduino IDE on Windows, macOS, and Linux after installing appropriate drivers. Select 'AI Thinker ESP32-CAM' board in settings.
Does it include the ESP32-CAM camera module?
No, this is only the programmer board. The ESP32-CAM module with camera is sold separately.
Can I use this to power the ESP32-CAM long-term?
Yes, the micro USB input provides 5V which is regulated to 3.3V for the ESP32-CAM. However, for continuous operation with high current WiFi use, ensure your USB source can supply at least 500mA.
📦 Free Setup Handoff Document Included
Every Compoden order includes a free setup handoff document — step-by-step instructions to get your component working within minutes. Download it via QR code on your package. The handoff document is also trained to help you troubleshoot the majority of problems.
Ask Soldr above what you can build with this — it knows every Compoden kit this part appears in.
