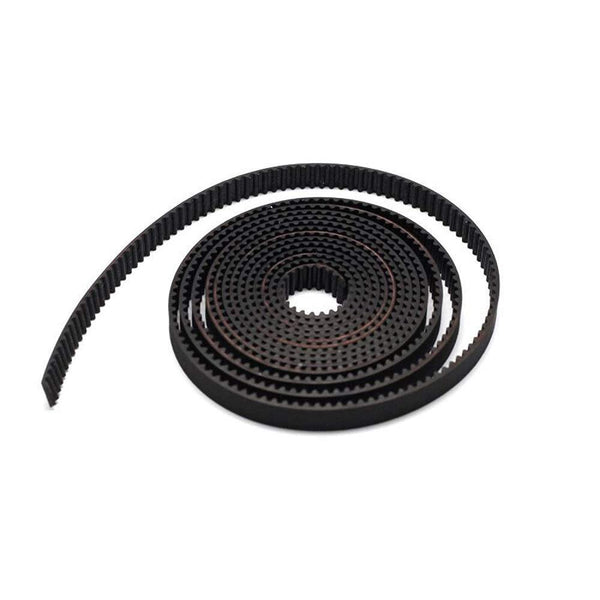

GT2 Timing Belt 1 Meter – 6mm Width for 3D Printers & CNC
GT2 Timing Belt 1 Metre — 6mm Width for 3D Printers, CNC
This 1-metre GT2 timing belt with 6mm width features 2mm pitch and a fiberglass-reinforced rubber construction, ideal for precise linear motion in 3D printers, CNC routers, and DIY automation projects.
Key Specifications
| Length | 1 metre (1000 mm) |
| Width | 6 mm |
| Pitch | 2 mm (GT2 profile) |
| Material | Neoprene rubber with fiberglass tensile cords |
| Tooth shape | Curvilinear (trapezoidal) |
| Working temperature | -30 °C to +80 °C (typical) |
| Elongation | Minimal stretch under normal loads |
| Colour | Black with white nylon tooth facing |
What You Can Build With This
- Mini CNC Plotter: Arduino Uno + two stepper motors, belt drives the Y-axis gantry for drawing or laser engraving.
- IoT Smart Curtain Opener: ESP32 with stepper driver, belt and pulley system to automate curtain movement via smartphone.
- Raspberry Pi Camera Slider: Pi 4 controls a stepper motor for smooth time‑lapse dolly shots, using a belt to pull the carriage.
- CBSE Physics Practical – Linear Motion: Demonstrate uniform acceleration by driving a carriage with this belt and measuring speed vs time.
- B.Tech Project – Automated Conveyor Sorter: Build a mini conveyor using the belt, IR sensors and a servo gate for object sorting challenge.
Compatibility
| Platform | Compatible | Connection | Library / Method |
|---|---|---|---|
| Arduino Uno R3 | Yes, with stepper driver | Pulse/Dir pins to driver (e.g., A4988) | AccelStepper |
| Arduino Nano | Yes, with stepper driver | Pulse/Dir pins to driver | AccelStepper |
| Arduino Mega 2560 | Yes, with stepper driver | Pulse/Dir pins to driver | AccelStepper |
| ESP8266 NodeMCU | Yes, with stepper driver | GPIO to driver step/dir | TMCStepper or AccelStepper |
| ESP32 Dev Board | Yes, with stepper driver | GPIO to driver step/dir | TMCStepper or AccelStepper |
| Raspberry Pi Pico | Yes, with stepper driver | GPIO to driver step/dir | Pico Stepper library |
| Raspberry Pi 4 / 5 | Yes, with stepper driver | GPIO to driver step/dir | RPi.GPIO + Python or AccelStepper via Firmata |
Wiring and Interface Notes
The GT2 belt itself does not connect electrically; it is driven by a pulley attached to a stepper motor. Use a compatible GT2 20‑tooth pulley and a stepper driver like A4988 or TMC2208 between your microcontroller and the motor. Maintain proper tension — a belt that is too slack causes backlash, while over‑tightening wears bearings and increases motor load.
Frequently Asked Questions
Is this belt suitable for CoreXY 3D printers?
Yes, the 6 mm width and 2 mm pitch are standard for CoreXY kinematics. Pair with 20‑tooth pulleys for optimal accuracy and reduced ringing.
Can I cut this belt to a custom length?
Absolutely — use sharp scissors or a craft knife. To prevent fraying, lightly melt the cut ends with a lighter or apply cyanoacrylate glue.
Ask Soldr above what you can build with this — it knows every Compoden kit this part appears in.
