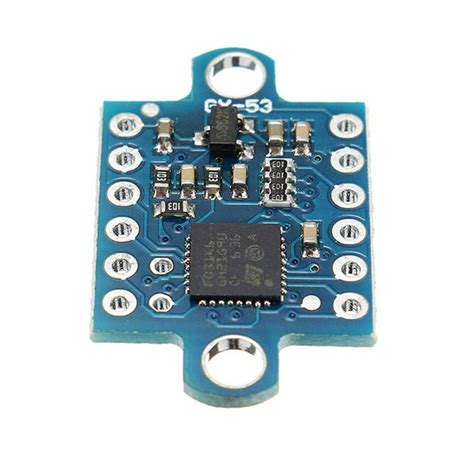

GY-53 VL53L0X ToF Laser Distance Sensor Module
GY-53 VL53L0X Laser ToF Ranging Sensor – 2m Range
The GY-53 module integrates the STMicroelectronics VL53L0X time-of-flight laser ranging sensor. It provides accurate, non-contact distance measurements up to 2 meters, making it ideal for obstacle avoidance, gesture detection, and short-range positioning. The I2C interface and compact breakout board allow easy integration into microcontroller projects.
Key Specifications
| Specification | Value |
|---|---|
| Operating Voltage | 3.3V – 5V DC (on-board regulator) |
| Measuring Range | 30 mm to 2000 mm (in dark), 30 mm to 1000 mm (ambient light) |
| Resolution | 1 mm |
| Accuracy | ±5% (typical, >80% reflectivity) |
| Interface | I2C (address 0x29, configurable via XSHUT) |
| Laser Class | Class 1 (eye-safe, 940 nm VCSEL) |
What You Can Build With This
- Collision avoidance system for small robots or rovers
- Liquid level monitoring in tanks or containers
- Gesture-based control interface (wave to trigger)
- Drone altitude hold and terrain following
Compatibility
Works with any 3.3 V or 5 V microcontroller that supports I2C, including Arduino Uno/Nano/Mega, ESP8266/ESP32, Raspberry Pi, and STM32 boards. Pair with motor drivers for autonomous robots or servo controllers for pan-tilt systems. Standard I2C pull-up resistors (typically 4.7 kΩ) are required if not already present on the bus.
Wiring Notes
Connect VCC to 3.3 V or 5 V, GND to common ground, SDA to I2C data, and SCL to I2C clock. The XSHUT pin can be pulled LOW to disable the sensor or used with multiple sensors to assign unique I2C addresses. Keep wiring short and avoid high-current paths to prevent noise.
Why Buy from Compoden
Every component is sourced from verified suppliers and tested for compatibility before listing. We've spent 10 years building projects for makers, schools, and institutions across India. Ships from Bengaluru in 3-5 days. If defective on arrival, replace within 7 days.
Is this compatible with Arduino?
Yes, it uses I2C and works with both 3.3 V and 5 V Arduino boards. Libraries like Adafruit_VL53L0X make reading distance straightforward.
How accurate is the sensor?
Under typical indoor conditions with good reflectivity, accuracy is within ±5%. For precision tasks, ensure stable lighting and target surface reflectivity.
Can I measure distance through glass or transparent materials?
No, the sensor's laser reflects off the first surface it hits, causing inaccurate readings. Use it only in open air or with non-reflective targets.
