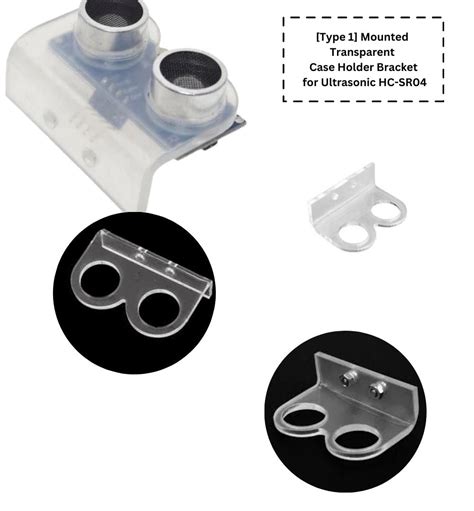

Acrylic Mounting Bracket for HC-SR04 Ultrasonic Sensor
This durable acrylic bracket is precision-cut to securely hold an HC-SR04 ultrasonic distance sensor. Ideal for robotics, automation, and IoT projects, it provides stable mounting and protects the sensor. The bracket enables consistent alignment for accurate distance measurements.
Key Specifications
| Specification | Value |
|---|---|
| Material | Acrylic (3mm thick) |
| Compatible Sensor | HC-SR04 |
| Mounting Holes | 4x M3 screws |
| Dimensions | 45 x 20 x 8 mm (approx) |
| Weight | 10g |
| Color | Transparent |
What You Can Build With This
- Obstacle-avoiding robot car
- Water level monitoring system
- Parking sensor for model vehicles
- Distance-based automation triggers
Compatibility
Designed exclusively for the HC-SR04 ultrasonic sensor. Works with any microcontroller or single-board computer that supports the sensor, including Arduino Uno, Raspberry Pi, ESP8266, and STM32. The bracket does not interfere with the sensor’s 5V operating voltage.
Wiring Notes
Mount the sensor onto the bracket using two small screws (not included) through the sensor's PCB holes. The bracket can be attached to your project chassis with M3 bolts via the four corner slots. Ensure the sensor’s transducers face outward, unobstructed by the bracket.
Why Buy from Compoden
Every component is sourced from verified suppliers and tested for compatibility before listing. We've spent 10 years building projects for makers, schools, and institutions across India. Ships from Bengaluru in 3-5 days. If defective on arrival, replace within 7 days.
Is this compatible with Arduino Uno?
Yes, it works perfectly with Arduino Uno. The bracket simply holds the HC-SR04 sensor; you connect the sensor to the Arduino using standard jumper wires.
Does it come with screws to mount the sensor?
The bracket is supplied without screws. You can use M2 or M2.5 nuts and bolts to attach the sensor, commonly available in hardware stores.
Can I use this outdoors?
Acrylic is UV-resistant and weatherproof for typical outdoor use, though long-term exposure may cause slight yellowing. It protects the sensor from minor bumps.
📦 Free Setup Handoff Document Included
Every Compoden order includes a free setup handoff document — step-by-step instructions to get your component working within minutes. Download it via QR code on your package. The handoff document is also trained to help you troubleshoot the majority of problems.
Ask Soldr above what you can build with this — it knows every Compoden kit this part appears in.
