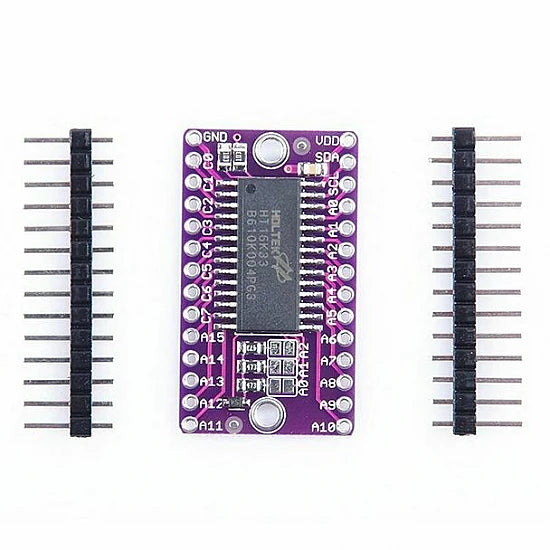

HT16K33 16x8 LED Matrix Driver Breakout (I2C)

An HT16K33-based LED matrix controller that drives up to 16x8 (128) LEDs and also scans a 13x3 key matrix, all over a two-wire I2C bus. It offloads multiplexing and brightness control from the host microcontroller.

Specifications

• HT16K33 driver IC
• drives up to 16x8 (128 LEDs)
• 13x3 matrix key scan
• I2C two-wire bidirectional bus
• operating voltage 4.5-5.5V
• board approx 38 x 20 x 2 mm

Compatible with

• Arduino
• ESP32
• ESP8266
• Raspberry Pi
• any microcontroller with I2C
