Joystick Robotics Control Shield for Arduino – 2-Axis Analog Joystick with Pushbutton

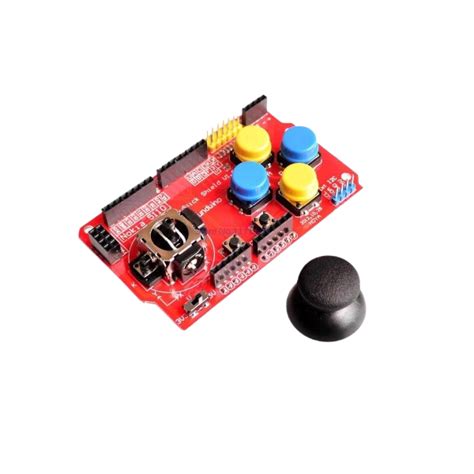

This joystick shield turns your Arduino board into a ready-to-use controller for robotics, gaming, and interactive projects. It features a two-axis analog joystick with a built-in pushbutton, plus additional digital buttons for extra commands. Stack it directly onto an Arduino Uno or compatible board to start prototyping immediately.
Key Specifications
| Specification | Value |
|---|---|
| Operating Voltage | 5V DC (from Arduino) |
| Joystick Axes | 2 (X and Y, analog output 0-5V) |
| Joystick Pushbutton | 1 (digital, active low) |
| Additional Buttons | 4 momentary pushbuttons |
| Dimensions | 69 x 54 x 20 mm |
| Weight | 30g |
What You Can Build With This
- Wireless robot control (with nRF24L01 module)
- DIY game controller for PC or retro console
- Camera pan/tilt system
- Remote-controlled car or drone
Compatibility
This shield directly stacks onto Arduino Uno, Mega, Leonardo, and similar boards with standard Arduino shield pinout. It operates at 5V logic, making it fully compatible with most 5V Arduino boards. For 3.3V boards like Arduino Due, use with level shifters if necessary.
Wiring Notes
No external wiring is needed when stacked onto an Arduino. The joystick X and Y axes connect to analog pins A0 and A1, while the pushbutton and extra buttons use digital pins (typically D2–D6). Check your specific shield’s pin labeling before programming.
