Servo Pan-Tilt Mount Kit with Arduino Uno + Servo
Build a 2-Axis Servo Pan-Tilt Mount with Arduino Uno – Motion Control Kit
Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-5 days.
Imagine smoothly panning and tilting a small camera or sensor simply by turning two knobs. This kit lets you build a responsive 2-axis pan-tilt mount using an Arduino Uno and two SG90 servos. It’s the ideal first step into motion control, showing how analog inputs translate directly into precise mechanical movement.
What You'll Build
You’ll construct a working pan-tilt mechanism that sweeps a servo horn side to side and up and down, all guided by the twist of two potentiometers. Once assembled, you can mount a lightweight phone or sensor module (not included) and experiment with targeting objects or tracking motion. The result is a tangible, programmable motion platform you can later expand with sensors or Bluetooth control.
What You'll Learn
- Read analog values from a potentiometer and map them to servo angles using Arduino code.
- Wire two independent servos and potentiometers on a breadboard without signal conflicts.
- Understand pulse-width modulation (PWM) and how servos interpret position commands.
- Troubleshoot servo jitter and calibration by adjusting code and physical mounting.
Kit Contents
| Component | Quantity |
|---|---|
| Arduino Uno R3 | 1 |
| SG90 Servo | 2 |
| Pan-Tilt Bracket | 1 |
| 10kΩ Potentiometer | 2 |
| 400-pt Breadboard | 1 |
| M-M Wires | 20 |
| M-F Wires | 10 |
| 9V Battery Snap | 1 |
Why Buy This Kit Instead of Sourcing Parts Separately
| Factor | Sourcing Separately | Compoden Kit |
|---|---|---|
| Compatibility checks | You verify every part | Pre-tested as a system |
| Build support | Forums and scattered tutorials | AI companion trained on this exact project |
| Time to first working build | Days of debugging | Hours, with step-by-step guidance |
| Shipping coordination | Multiple sellers, multiple delays | One shipment from Bengaluru in 3-5 days |
Who This Kit Is For
Young makers aged 5–15 exploring their first robotics project, CBSE Class 11–12 students experimenting with sensor-actuator integration, and ATL Tinkering Lab coordinators looking for a ready-to-run motion demo. B.Tech ECE and EEE freshmen will also find it a quick, hands-on way to understand analog-to-digital mapping and servo feedback.
Built and Backed by Compoden
Every Compoden kit ships with an AI build companion trained on this exact project — accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.
What if I get stuck during the build?
Scan the QR code on the box to start a conversation with the AI build companion. It knows your exact kit and can guide you step by step. If you need human help, reply via WhatsApp and a team member from Bengaluru will assist you.
Can I power this kit with a USB cable instead of a battery?
Yes, the Arduino can draw power from USB, but the two servos may need more current than a standard port provides, causing weak or jittery motion. We recommend using the included 9V battery snap for reliable torque while you learn.
Is this kit suitable for a school exhibition project?
Absolutely, the visible mechanical movement and direct knob control make it an engaging demonstration for visitors. You can even attach a laser pointer or a paper arrow to clearly show the pan-tilt action.
Do I need to solder anything?
No, all electrical connections are made on the breadboard using the included male-male and male-female jumper wires. The servos plug directly into the board, and the entire assembly is solderless.

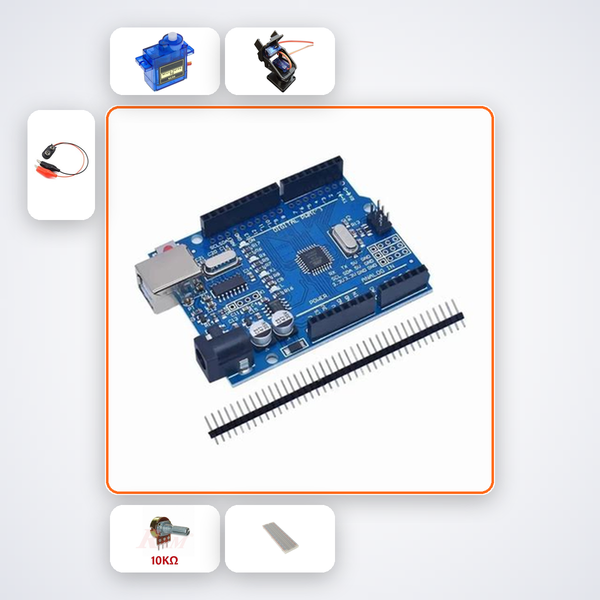

Two SG90 servos on pan-tilt bracket controlled by two potentiometers. First 2-axis positioning demo.
What's in this kit
- Arduino Uno R3
- SG90 Servo x2
- Pan-Tilt Bracket
- 10kΩ Potentiometer x2
- 400-pt Breadboard
- M-M Wires x20
- M-F Wires x10
- 9V Battery Snap
