MAX98357A I2S 3W Class-D Audio Amplifier Module
Open this project in the Soldr app → What is Soldr.ai → wiring, code and test steps for exactly these parts
The MAX98357A is a mono 3W Class-D amplifier that takes I2S digital audio directly — no separate DAC needed. It is the standard way to get sound out of an ESP32, ESP32-S3 or Raspberry Pi when the audio path is already digital.
Why I2S rather than an analog amplifier
An analog amplifier (such as a PAM8403) needs the microcontroller to produce an analog signal first, via its DAC or a PWM pin. The MAX98357A accepts the digital I2S stream straight from the controller, so the signal stays digital end to end — cleaner, and simpler to wire.
Connections

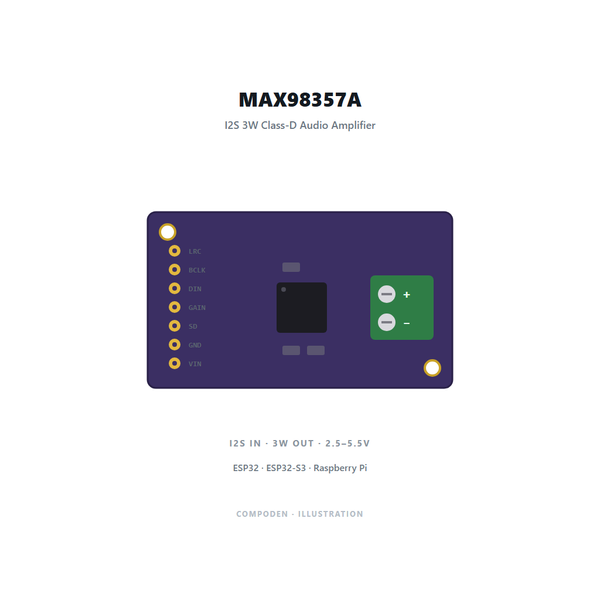

Seven pins: LRC (word select), BCLK (bit clock) and DIN (data) are the three I2S lines, plus VIN and GND for power. No external MCLK is required.
Two more are optional and can be left unconnected: GAIN sets the output level (9dB by default), and SD shuts the amplifier down or selects left/right/mono channel.
The speaker connects to the green two-pole screw terminal.
Specifications
- Output: 3W mono into 4Ω (Class-D)
- Interface: I2S digital audio input
- Supply: 2.5V – 5.5V
- Pairs with: ESP32 / ESP32-S3 / ESP32-C3 / Raspberry Pi
- Typical use: voice assistants, intercoms, sound playback, AI audio projects
Commonly paired with an INMP441 I2S MEMS microphone for a full digital audio in/out path.
Ask Soldr above what you can build with this — it knows every Compoden kit this part appears in.
