Micro USB OTG Adapter Host Cable for Raspberry Pi - Compoden
Micro USB OTG Adapter Host Cable — Enables USB Host Mode for Raspberry Pi

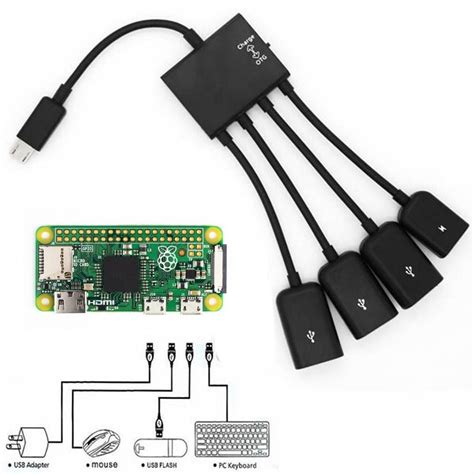

This Micro USB OTG Adapter Host Cable allows you to connect standard USB devices like keyboards, mice, and flash drives to your Raspberry Pi Zero, Pi Zero W, or Pi 3A+. It features a micro USB male connector on one end and a standard USB A female port on the other, enabling host mode so your Pi can act as a USB host. Simply plug in and expand your Pi's capabilities without needing a powered hub for basic peripherals.
Key Specifications
| Specification | Value |
|---|---|
| Connector Type | Micro USB Male to USB A Female |
| USB Standard | USB 2.0 (Hi-Speed, 480 Mbps) |
| Cable Length | 15 cm (approx.) |
| Compatibility | Raspberry Pi Zero, Zero W, Pi 3A+, OTG Android devices |
| OTG Function | Enables host mode for connecting peripherals |
| Color | Black |
What You Can Build With This
- Create a portable retro gaming console by connecting a USB game controller to your Pi Zero.
- Set up a lightweight network-attached storage (NAS) with a USB flash drive.
- Build a USB audio streaming device by attaching a USB DAC to your Pi for high-quality sound.
- Use it with a USB-to-Ethernet adapter to add wired networking to a Pi Zero.
Compatibility
The OTG cable is compatible with any device featuring a micro USB port that supports USB On-The-Go (OTG) host mode. It works seamlessly with Raspberry Pi models that have a micro USB data port, such as the Pi Zero, Pi Zero W, and Pi 3A+. It also works with many Android smartphones and tablets that support OTG functionality. Ensure your device’s firmware or OS supports OTG host mode; most Linux distributions for Raspberry Pi enable this by default.
Wiring Notes
Simply plug the micro USB end into the OTG-capable port on your Raspberry Pi (often labeled "USB" or "PWR IN" on Pi Zero). The USB A female port allows direct connection of peripherals. For power-hungry devices, consider a powered USB hub, as the Pi’s port can typically supply up to 500mA. No additional drivers are needed; the Pi will recognize most standard USB devices automatically.
Why Buy from Compoden
Every component is sourced from verified suppliers and tested for compatibility before listing. We've spent 10 years building projects for makers, schools, and institutions across India. Ships from Bengaluru in 3-5 days. If defective on arrival, replace within 7 days.
Is this compatible with Raspberry Pi 4?
The Raspberry Pi 4 uses USB-C for power and data, so this Micro USB OTG cable is not directly compatible. For Pi 4, you would need a USB-C OTG adapter instead.
Can I use this to power the Raspberry Pi while using USB devices?
This cable is for data only. On Pi Zero, the micro USB port is for both power and data, but when using OTG, it's recommended to power the Pi via the GPIO header or use a hub that passes power.
Does it work with USB 3.0 devices?
Yes, it is backwards compatible with USB 3.0 devices but will operate at USB 2.0 speeds (up to 480 Mbps).
