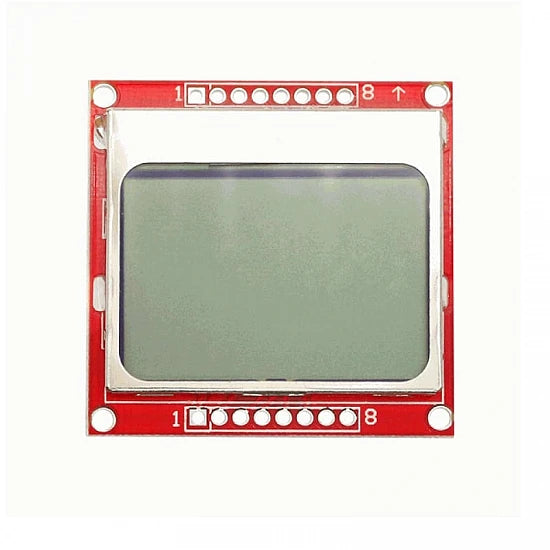

Nokia 5110 Graphic LCD Display Module 84x48 (PCD8544)
A monochrome 84x48 pixel graphic LCD based on the PCD8544 controller, the same module used in the Nokia 5110/3310 phones. It drives over a simple SPI serial bus and can show both graphics and text.
Specifications
- 84x48 pixel monochrome graphic
- PCD8544 controller
- 2.7-3.3V input
- SPI serial interface
- 8 pins (RST CE DC DIN CLK VCC LIGHT GND)
- Up to 4 Mbps transfer
- <200uA typical
- PCB 4.55 x 4.35 cm
Compatible with
- Arduino
- AVR
- MCS51
- Microcontrollers with SPI
- Run at 3.3V for best results
