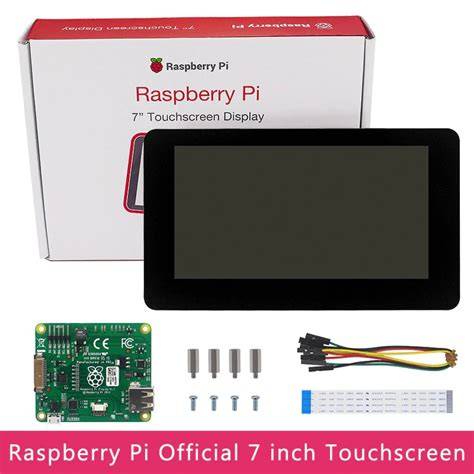

Official Raspberry Pi 7 Inch Touch Display - 800x480 Capacitive
Official Raspberry Pi 7 Inch Touch Display
The Official Raspberry Pi 7 Inch Touch Display provides a high-quality 800x480 capacitive touchscreen interface for all Raspberry Pi computers with a DSI connector. Its slim profile and full 10-point multi-touch support make it ideal for interactive kiosks, home automation panels, portable media players, and embedded industrial control systems. The display attaches directly to the Pi via the included adapter board, creating a compact, all-in-one computing solution without an external monitor.
Key Specifications
| Specification | Value |
|---|---|
| Display Size | 7 inch diagonal |
| Resolution | 800 x 480 pixels |
| Touch Type | 10-point capacitive touch |
| Connectivity | DSI (display), GPIO (power & I2C touch) |
| Power Supply | 5V via GPIO pins from Raspberry Pi |
| Dimensions | 194 x 110 x 20 mm (display + adapter) |
What You Can Build With This
- Smart home dashboard with touch controls for lights, temperature, and security cameras
- Retro gaming console with touch‑based emulator front‑end
- Industrial HMI panel for machine monitoring and control
- Digital photo frame with gesture‑based slideshow navigation
Compatibility
Works with any Raspberry Pi board that features a DSI connector, including all models from Pi 2, Pi 3, Pi 4, and Pi 5. The Pi Zero and Zero W require a separate adapter cable (not included) to connect to the smaller mini‑DSI port. Mechanical mounting holes align with Pi boards for direct attachment; four stand‑offs and screws are provided.
Wiring Notes
Connect the flat‑flex cable from the display adapter to the DSI port on the Raspberry Pi, ensuring the blue tab faces the Ethernet/USB ports. The touch controller and backlight are powered via the GPIO header—attach the included jumper wires to 5V (Pin 2 or 4) and GND (Pin 6). No additional drivers are needed on Raspberry Pi OS Bullseye or later; the display is automatically detected.
Why Buy from Compoden
Every component is sourced from verified suppliers and tested for compatibility before listing. We've spent 10 years building projects for makers, schools, and institutions across India. Ships from Bengaluru in 3-5 days. If defective on arrival, replace within 7 days.
Is this compatible with Raspberry Pi 5?
Yes, it works with all Raspberry Pi models that have a DSI connector, including the Pi 5. The display is automatically recognized in Raspberry Pi OS; touch input requires no extra config.
How do you power the display?
The display pulls power from the Pi's GPIO 5V pins via the supplied jumper wires. No external power supply is needed—just ensure your Pi's power adapter can handle the combined load.
Can I use this touchscreen with Windows or Ubuntu?
Official drivers are provided for Raspberry Pi OS (Linux). For Windows 10/11 IoT Core or Ubuntu, third‑party touch drivers may be required, and functionality is not guaranteed.
📦 Free Setup Handoff Document Included
Every Compoden order includes a free setup handoff document — step-by-step instructions to get your component working within minutes. Download it via QR code on your package. The handoff document is also trained to help you troubleshoot the majority of problems.
Ask Soldr above what you can build with this — it knows every Compoden kit this part appears in.
Shipping Information
- Prepaid Orders: ₹75 for orders up to ₹999, FREE shipping above ₹999
- COD Orders: ₹125 shipping + ₹50 COD fee = ₹175 total
- Delivery Timeline: Dispatch in 1-2 days, delivery in 2-7 days depending on location
Returns & Warranty
- 7-Day Return: Manufacturing defects only (approval required)
- Warranty: 7 days from delivery
- Non-Returnable: Batteries, consumables, cut wires, clearance items
