Official Raspberry Pi M.2 HAT+ - NVMe SSD Add-on Board for Pi 5
Official Raspberry Pi M.2 HAT+ - PCIe Gen2 x1 NVMe SSD Expansion Board for Pi 5

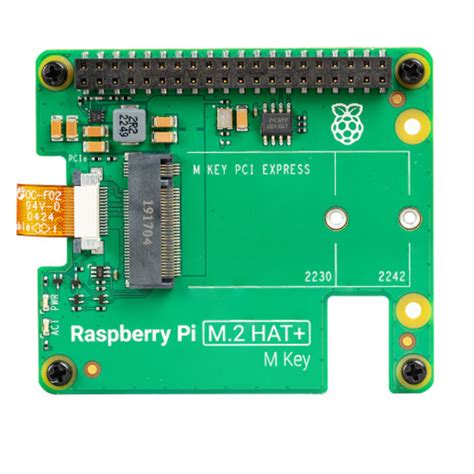

The Official Raspberry Pi M.2 HAT+ is a dedicated add-on board for the Raspberry Pi 5 that enables connection of M.2-format NVMe solid-state drives via the single-lane PCIe 2.0 interface. It supports 2230 and 2242 size drives, allowing high-speed storage expansion far beyond microSD cards. With this HAT, you can boot your Pi 5 directly from SSD for much faster load times and system responsiveness, transforming your single-board computer into a compact workstation with significantly improved I/O performance for data-intensive projects.
Key Specifications
| Specification | Value |
|---|---|
| Compatible Pi Models | Raspberry Pi 5 only |
| M.2 Form Factor | 2230 and 2242 |
| Interface | PCIe 2.0 x1 (5 GT/s) |
| Dimensions | 65mm x 56.5mm |
| Power | Via GPIO pins (3.3V) |
| Additional Features | Onboard power button, status LED |
What You Can Build With This
- High-speed boot drive for Raspberry Pi OS, slashing boot times and application launches
- Network-attached storage (NAS) with OpenMediaVault for reliable file serving
- Portable media server using Plex or Jellyfin with fast library scanning
- Retro gaming console with Batocera, loading large ROM libraries instantly
Compatibility
Designed exclusively for the Raspberry Pi 5, this HAT mates with the GPIO header and uses the new FPC connector for PCIe signals. It requires the latest Raspberry Pi OS (Bookworm or later) with PCIe support enabled in config.txt. Not compatible with earlier Pi models due to different connectors and lack of PCIe interface.
Wiring Notes
Simply align the HAT with the GPIO pins and secure with spacers. Connect an M.2 drive by sliding it into the slot and securing with a screw. No soldering is needed. Ensure the Pi 5 firmware is updated to enable PCIe Gen2 speeds for optimal performance.
Why Buy from Compoden
Every component is sourced from verified suppliers and tested for compatibility before listing. We've spent 10 years building projects for makers, schools, and institutions across India. Ships from Bengaluru in 3-5 days. If defective on arrival, replace within 7 days.
Is this compatible with Raspberry Pi 4?
No, the M.2 HAT+ is designed only for the Raspberry Pi 5 due to the specific FPC connector and GPIO layout. Pi 4 lacks the necessary PCIe interface.
What M.2 drive sizes are supported?
It accepts 2230 and 2242 M.2 drives. Drives with 2280 length require an adapter or are too long to fit on the HAT.
Can I use this to add Wi-Fi or other M.2 cards?
The HAT is designed for NVMe SSDs only. Other M.2 cards like Wi-Fi adapters may not work due to PCIe lane restrictions and firmware support.
