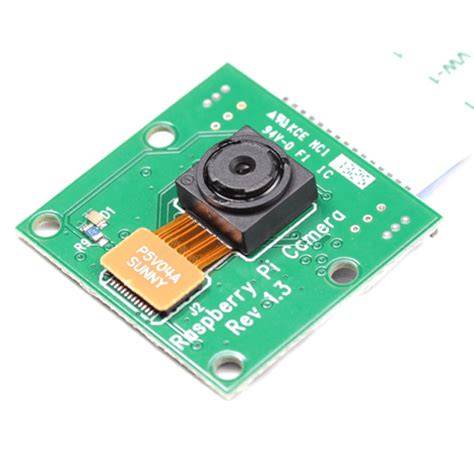

Raspberry Pi 5MP Camera Module Board with Cable – 5MP, 1080p
Raspberry Pi 5MP Camera Module Board with Cable – 5 Megapixel, 1080p Video
The Raspberry Pi 5MP Camera Module Board is a compact, high-quality camera designed specifically for the Raspberry Pi range of single-board computers. Equipped with a 5-megapixel OmniVision OV5647 sensor, it captures sharp still images and smooth 1080p video at 30 frames per second. This module connects directly to the Raspberry Pi’s CSI port via the included ribbon cable, making it ideal for projects in photography, surveillance, computer vision, and more.
Key Specifications
| Specification | Value |
|---|---|
| Sensor | OmniVision OV5647 5MP CMOS |
| Resolution (Still) | 2592 × 1944 pixels |
| Video Modes | 1080p @ 30fps, 720p @ 60fps, 480p @ 90fps |
| Field of View | 54° (horizontal) / 41° (vertical) – standard lens |
| Connection | 15-pin MIPI CSI ribbon cable (included) |
| Dimensions | 25mm × 23mm × 9mm |
What You Can Build With This
- A motion‑activated wildlife camera to capture photos of visiting animals
- A DIY home security camera with live streaming and recording
- A time‑lapse rig to document plant growth or construction progress
- A computer vision setup for object detection or face recognition with OpenCV
Compatibility
This camera module is compatible with all Raspberry Pi models that expose a CSI‑2 connector, including Raspberry Pi 5, 4, 3B+, 3B, 2B, Zero 2 W, and Zero. It works with the official Raspberry Pi OS and third‑party Linux distributions after enabling the camera interface. For Raspberry Pi Zero and Zero W, a separate narrower ribbon cable may be required (adapter not included).
Wiring Notes
Connect the ribbon cable with the blue side facing the Ethernet port on standard Pi boards, ensuring the metal contacts face away from the latch. Gently lift the CSI connector’s plastic tab, insert the cable fully, and press the tab down. Avoid flexing the cable sharply; a 50mm bend radius is recommended to prevent signal degradation.
Why Buy from Compoden
Every component is sourced from verified suppliers and tested for compatibility before listing. We've spent 10 years building projects for makers, schools, and institutions across India. Ships from Bengaluru in 3-5 days. If defective on arrival, replace within 7 days.
Is this compatible with Arduino?
No, this camera uses the MIPI CSI interface, which Arduino boards do not have. It is designed exclusively for Raspberry Pi and other boards with a compatible CSI port.
Can I adjust focus?
The lens is fixed‑focus out of the box. However, you can gently rotate the lens barrel after removing any adhesive to adjust focus manually.
What is the maximum cable length?
The included cable is 15 cm. Longer cables up to 1 meter are available for separate purchase, but signal quality may degrade beyond 50 cm without proper shielding.
