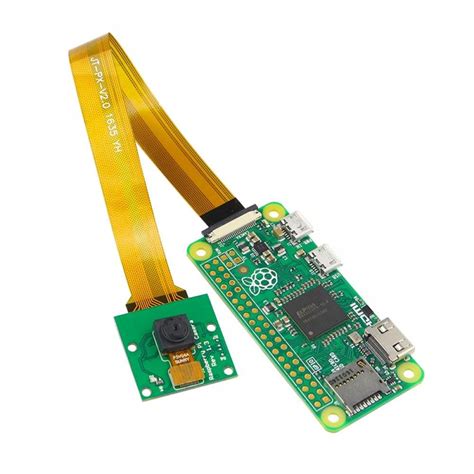

Raspberry Pi 5MP Zero W Camera Module with HBV FFC Cable – 5MP Sensor
Raspberry Pi 5MP Zero W Camera Module with HBV FFC Cable
The Raspberry Pi 5MP Zero W Camera Module brings high-resolution imaging to your single-board computer projects. Built around a fixed-focus 5-megapixel sensor, it captures stills at 2592×1944 pixels and supports 1080p30 video recording. The included HBV FFC (flat flexible cable) is designed for the Raspberry Pi Zero and Zero W’s smaller CSI connector, enabling a compact, tether-free setup for embedded vision applications.
Key Specifications
| Specification | Value |
|---|---|
| Image Sensor | Omnivision OV5647 |
| Resolution | 2592 × 1944 (5 megapixels) |
| Video Modes | 1080p30, 720p60, 640×480p60/90 |
| Interface | 15-pin CSI ribbon cable (HBV FFC included) |
| Lens | Fixed focus, f/2.9 |
| Cable Length | 150 mm (optimized for Pi Zero W) |
What You Can Build With This
- Time-lapse camera for plant growth or weather monitoring
- DIY security camera with motion detection using MotionEyeOS
- Microscope adapter for documenting tiny objects
- Portable point-and-shoot with a Pi Zero and battery pack
Compatibility
This module works with any Raspberry Pi board that has a CSI connector, including the Pi 2, 3, 4, Zero, and Zero W. The supplied FFC cable is specifically trimmed for the Zero’s compact layout, but standard Pi models can use it with the correct orientation. It draws power directly from the 3.3V rail and is recognized by Raspberry Pi OS without extra drivers.
Wiring Notes
Connect the ribbon cable to the CSI port with the blue tab facing the Ethernet/USB ports on full-size Pi boards, or towards the board edge on the Zero. Ensure the cable is fully inserted and the connector latch is pressed down. No external power or pull-ups are needed.
Why Buy from Compoden
Every component is sourced from verified suppliers and tested for compatibility before listing. We've spent 10 years building projects for makers, schools, and institutions across India. Ships from Bengaluru in 3-5 days. If defective on arrival, replace within 7 days.
Is this compatible with Raspberry Pi 4?
Yes, it works with all standard Pi models, but you may need a longer cable (adapter sold separately) if the short FFC doesn't reach comfortably on a Pi 4.
Does it work with the Pi Zero W out of the box?
Absolutely. The included HBV FFC cable is specifically designed for the Zero W’s miniature CSI connector, so no additional adapters are required.
Can I use this for night vision?
The stock module has an infrared filter and is not sensitive to IR light. For night vision, you can carefully remove the filter (a non-reversible modification) and add an IR illuminator.
