Raspberry Pi Camera Module 2 NoIR - 8MP Night Vision Cam
Raspberry Pi Camera Module 2 NoIR – 8MP Night Vision Camera

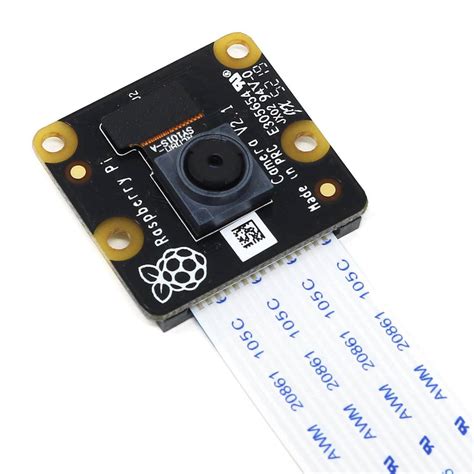

The Raspberry Pi Camera Module 2 NoIR is an official 8-megapixel camera board without an infrared filter, enabling it to capture visible and infrared light. It's designed for night vision applications, wildlife monitoring, security systems, and low-light photography when paired with IR illumination. Built on the Sony IMX219 sensor, it delivers sharp stills at 3280x2464 and smooth video up to 1080p30.
Key Specifications
| Specification | Value |
|---|---|
| Sensor | Sony IMX219 8-megapixel |
| Still Resolution | 3280 × 2464 pixels |
| Video Modes | 1080p30, 720p60, VGA90 |
| IR Filter | None (sensitive to IR light) |
| Interface | CSI-2 (15-pin ribbon cable) |
| Included Cable | 150mm ribbon cable |
What You Can Build With This
- Night vision surveillance camera with IR LEDs
- Wildlife trail camera that captures animals in the dark
- Low-light time-lapse photography setup
- Infrared doorbell or peephole camera
Compatibility
Compatible with all Raspberry Pi boards featuring the CSI connector, including Raspberry Pi 5, 4, 3, 2, and Zero (Zero requires a separate adapter cable). Works with standard Raspbian and libcamera software. Operates on 3.3V supplied by the board.
Wiring Notes
Connect the ribbon cable with contacts facing the HDMI port. Ensure the cable is fully inserted and the connector clamp is locked. For IR illumination, you'll need external IR LEDs; the camera has no built-in LED driver, so wire LEDs with a current-limiting resistor to a separate power source or GPIO with transistor.
Why Buy from Compoden
Every component is sourced from verified suppliers and tested for compatibility before listing. We've spent 10 years building projects for makers, schools, and institutions across India. Ships from Bengaluru in 3-5 days. If defective on arrival, replace within 7 days.
Is this compatible with Raspberry Pi 5?
Yes, the NoIR Camera Module 2 works with all Raspberry Pi 5 models via the CSI connector, using the libcamera software stack.
Can I use this camera for normal daylight photos?
Yes, but due to the missing IR filter, images may appear washed out or have a pinkish hue. For natural colors, use an external IR-cut filter or plan post-processing.
What IR LEDs work best with this camera?
Choose 850nm LEDs if you don't mind a faint red glow, or 940nm for completely invisible illumination. Wire them with a suitable resistor and a transistor driver from a GPIO pin.
