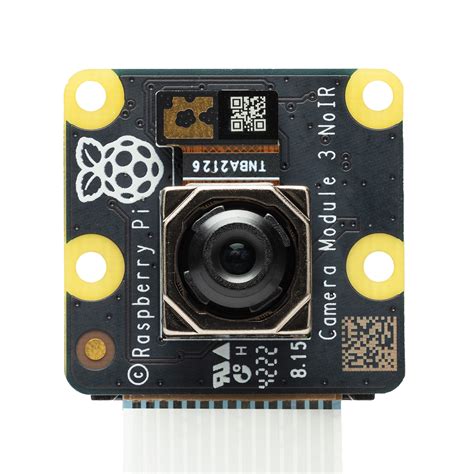

Raspberry Pi Camera Module 3 NoIR — 12MP Autofocus IR Camera
The Raspberry Pi Camera Module 3 NoIR is a 12-megapixel camera board without an infrared filter, making it sensitive to IR light. It is designed for low-light and night-time imaging applications, with built-in autofocus for sharp close-ups and distant shots. Use it for security systems, wildlife monitoring, or any project where visible light is limited.
Key Specifications
| Specification | Value |
|---|---|
| Sensor | Sony IMX708, 7.4mm diagonal |
| Resolution | 12 megapixels (4608 x 2592) |
| Autofocus | Motorized, adjustable via software |
| IR Filter | None (NoIR variant) |
| Compatibility | All Raspberry Pi boards with CSI connector |
| Dimensions | 25 x 24 x 11.5 mm |
What You Can Build With This
- Night vision security camera with motion-activated recording
- Wildlife trail camera to capture nocturnal animals
- DIY astronomy cam for lunar and planetary imaging
- AI-powered intruder detection using TensorFlow Lite
Compatibility
This module works with any Raspberry Pi model that has a 15-pin MIPI CSI connector, including Pi 5, Pi 4, Pi 3, and Pi Zero. For Pi 5, use the FPC adapter cable. It operates at 3.3V and is compatible with most standard camera libraries like libcamera and Picamera2.
Wiring Notes
Connect the included flat ribbon cable to the CSI port with the blue side facing the Ethernet jack on full-size boards. Ensure the cable is fully seated and the clip is secure. No additional wiring is needed unless you are adding external IR illuminators.
Why Buy from Compoden
Every component is sourced from verified suppliers and tested for compatibility before listing. We've spent 10 years building projects for makers, schools, and institutions across India. Ships from Bengaluru in 3-5 days. If defective on arrival, replace within 7 days.
Is this compatible with Raspberry Pi 5?
Yes, but you need the FPC adapter cable (sold separately) because the Pi 5 uses a different connector format. Once connected, all software functions normally.
Do I need extra IR illumination for night use?
In complete darkness, you'll need IR LEDs or an infrared illuminator. The camera is sensitive to IR light but does not emit its own; ambient IR from a source is required.
Can I use this for regular daytime photography?
Yes, but images will have a pinkish hue because there is no IR cut filter. You can use a software white balance correction or attach an external IR block filter for accurate colors.
