Raspberry Pi Camera Module 3 Wide – 12MP Autofocus | Compoden

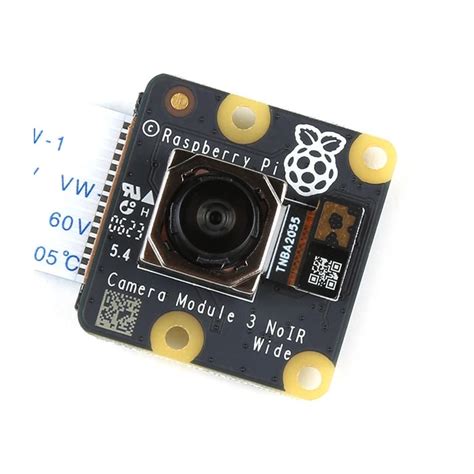

Raspberry Pi Camera Module 3 Wide – 12MP Autofocus with 102° Field of View
The Raspberry Pi Camera Module 3 Wide is a high-resolution camera module featuring a 12-megapixel Sony IMX708 sensor. With autofocus, HDR, and a 102-degree wide-angle lens, it captures crisp images and smooth 1080p video. Ideal for security systems, computer vision, time-lapse photography, and robotics projects on any Raspberry Pi board with a CSI connector.
Key Specifications
| Specification | Value |
|---|---|
| Sensor | Sony IMX708, 12MP |
| Field of View | 102° (diagonal) |
| Lens | Autofocus, f/1.8 |
| Video Resolution | 1080p50, 720p100 |
| Interface | 15-pin MIPI CSI |
| Dimensions | 25 x 24 x 9 mm |
What You Can Build With This
- Wide-angle home security camera with motion detection and night vision
- AI-powered intruder alert system using TensorFlow Lite on Raspberry Pi
- High-quality time-lapse plant growth monitor for indoor gardening
- Portable inspection camera for tight spaces with live streaming
Compatibility
Works with all Raspberry Pi models that feature a CSI camera connector: Raspberry Pi 5, 4, 3, Zero 2 W, and Zero. The autofocus and wide dynamic range are supported by the latest version of Raspberry Pi OS (Bookworm). Uses the standard 15-pin ribbon cable; a longer cable may be needed for larger enclosures.
Wiring Notes
Connect the ribbon cable to the CSI port with the blue tab facing the Ethernet port (on Pi 4/5). Ensure the cable is inserted fully and the connector is locked. No additional power is required; the camera draws up to 300mA via the CSI interface.
Why Buy from Compoden
Every component is sourced from verified suppliers and tested for compatibility before listing. We've spent 10 years building projects for makers, schools, and institutions across India. Ships from Bengaluru in 3-5 days. If defective on arrival, replace within 7 days.
Is this compatible with Raspberry Pi 5?
Yes, the Module 3 Wide is fully compatible with Raspberry Pi 5 using the latest OS. You may need a new ribbon cable with smaller connectors for the Pi 5's camera ports.
Does it work with night vision or infrared light?
The standard Module 3 Wide does not have an IR filter removed. For IR sensitivity, you would need a NoIR version. This model is optimized for daylight photography.
Can I use this for live streaming with motion detection?
Absolutely. With autofocus and 1080p50 video, it's excellent for real-time streaming. Combine with OpenCV or MotionEye OS for motion-triggered recording.
