Raspberry Pi Global Shutter Camera – 1.58MP, 60fps Global Shutter Module
Raspberry Pi Global Shutter Camera – 1.58MP, 60fps Global Shutter Module

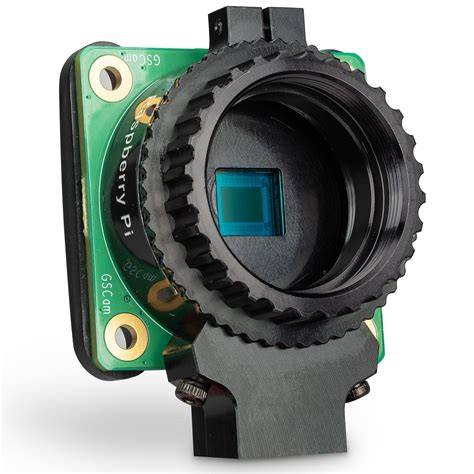

The Raspberry Pi Global Shutter Camera is a compact camera module featuring a Sony IMX296 sensor with global shutter technology. Unlike rolling shutter cameras, it captures an entire frame simultaneously, eliminating distortion when photographing fast-moving objects. Ideal for machine vision, motion capture, and industrial inspection.
Key Specifications
| Specification | Value |
|---|---|
| Sensor | Sony IMX296LQR-C |
| Resolution | 1.58 MP (1456×1080) |
| Shutter Type | Global Shutter |
| Max Frame Rate | 60 fps at full resolution |
| Lens | Integrated 2.7mm, F2.8 |
| Interface | 15-pin CSI ribbon cable |
What You Can Build With This
- Barcode and QR code scanner for inventory tracking
- High-speed object detection for robotics
- Scientific motion analysis with precise timing
- Automated optical inspection (AOI) system for manufacturing
Compatibility
This camera connects directly to any Raspberry Pi with a 15-pin CSI connector, including Raspberry Pi 5, 4, 3, 2, and Zero models (a adapter cable may be required for Pi Zero). It works out-of-the-box with the latest Raspberry Pi OS using the libcamera stack. No additional drivers are needed.
Wiring Notes
Attach the included ribbon cable to the CSI port on your Raspberry Pi, ensuring the blue tab faces the Ethernet port. The camera draws power directly from the board; no external supply is required. For Pi Zero, use a narrower ribbon cable.
Why Buy from Compoden
Every component is sourced from verified suppliers and tested for compatibility before listing. We've spent 10 years building projects for makers, schools, and institutions across India. Ships from Bengaluru in 3-5 days. If defective on arrival, replace within 7 days.
Is this compatible with Raspberry Pi 5?
Yes, the camera works with Raspberry Pi 5 using the standard 15-pin CSI connector. No adapter is needed; just connect the included ribbon cable.
Does the camera include a lens?
Yes, it comes with an integrated 2.7mm lens pre-mounted on the module. No additional lens is required for standard use.
What is the advantage of global shutter over rolling shutter?
Global shutter captures all pixels at the same instant, eliminating the ‘jello effect’ and skew that rolling shutter cameras produce when photographing fast motion or moving objects.
📦 Free Setup Handoff Document Included
Every Compoden order includes a free setup handoff document — step-by-step instructions to get your component working within minutes. Download it via QR code on your package. The handoff document is also trained to help you troubleshoot the majority of problems.
Ask Soldr above what you can build with this — it knows every Compoden kit this part appears in.
