Raspberry Pi High Quality Camera C/CS Mount - 12.3MP Sensor

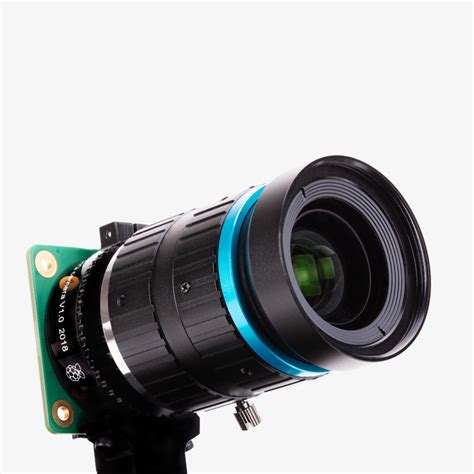

Raspberry Pi High Quality Camera - C/CS Mount (12.3MP Sony IMX477)
The Raspberry Pi High Quality Camera is a 12.3-megapixel camera module featuring a back-illuminated Sony IMX477 sensor and a C/CS lens mount. It delivers superior image quality compared to the standard Camera Module V2, making it ideal for professional and hobbyist applications such as astrophotography, machine vision, and surveillance. Its removable IR filter and compatibility with a wide range of lenses offer flexibility for various imaging projects.
Key Specifications
| Specification | Value |
|---|---|
| Sensor | Sony IMX477R stacked, back-illuminated |
| Resolution | 12.3 megapixels (4056 x 3040) |
| Pixel Size | 1.55 μm × 1.55 μm |
| Lens Mount | C/CS mount (C-mount compatible) |
| IR Filter | Integrated, removable |
| Max Frame Rate | 10 fps at full resolution, up to 300 fps (binned) |
What You Can Build With This
- DIY astrophotography rig for capturing deep-sky objects
- High-resolution machine vision system for object recognition
- Time-lapse camera for monitoring construction or nature
- Surveillance camera with interchangeable lenses for long-range zoom
Compatibility
Compatible with all Raspberry Pi boards with a CSI camera port, including Raspberry Pi 5, 4, 3, and Zero. Uses the standard 15-pin ribbon cable (included). Requires a C/CS mount lens (lenses sold separately). Works with Pi OS and most imaging software, including libcamera and Raspbian camera utilities.
Wiring Notes
Connect the included ribbon cable from the camera's CSI port to the Raspberry Pi's CSI port with the blue tab facing the Ethernet port. Ensure the cable is fully inserted and the connector is clamped. No additional pull-up resistors are needed; the camera is powered directly from the Pi.
Why Buy from Compoden
Every component is sourced from verified suppliers and tested for compatibility before listing. We've spent 10 years building projects for makers, schools, and institutions across India. Ships from Bengaluru in 3-5 days. If defective on arrival, replace within 7 days.
Is this compatible with Raspberry Pi 5?
Yes, the HQ Camera is fully compatible with Raspberry Pi 5 using the standard CSI ribbon cable. You may need to enable the camera in raspi-config and use the latest libcamera stack.
Do I need a separate lens?
Yes, the HQ Camera requires a C/CS mount lens (not included). You can use any standard C-mount or CS-mount lens, with CS-mount lenses needing a 5 mm adapter (included).
Can I use this for infrared photography?
Yes, by removing the integrated IR filter, you can capture infrared light. You may need an IR lens or external IR filter for best results.
📦 Free Setup Handoff Document Included
Every Compoden order includes a free setup handoff document — step-by-step instructions to get your component working within minutes. Download it via QR code on your package. The handoff document is also trained to help you troubleshoot the majority of problems.
Ask Soldr above what you can build with this — it knows every Compoden kit this part appears in.
