Raspberry Pi Zero - Compact Single-Board Computer
Raspberry Pi Zero — Compact, 1GHz Single-Board Computer with 512MB RAM

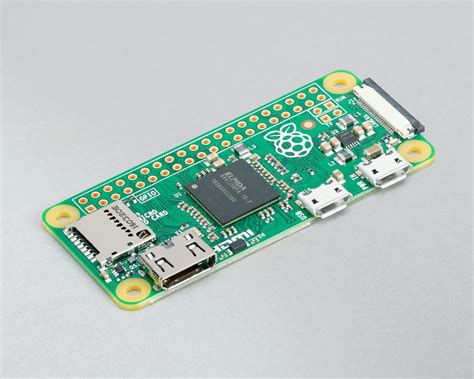

The Raspberry Pi Zero is a tiny, low-cost single-board computer built around the Broadcom BCM2835 system-on-chip. It features a 1GHz ARM11 processor, 512MB of RAM, and a range of connectivity options including Mini HDMI and micro USB. Ideal for embedded projects, IoT devices, and portable applications where size and power efficiency matter.
Key Specifications
| Specification | Value |
|---|---|
| Processor | Broadcom BCM2835, 1GHz single-core ARM11 |
| RAM | 512MB LPDDR2 SDRAM |
| Video Output | Mini HDMI (1080p60) |
| USB | 1 × Micro USB OTG |
| GPIO | 40-pin HAT-compatible header (unpopulated) |
| Storage | MicroSD card slot |
What You Can Build With This
- Portable retro gaming console with RetroPie
- Smart IoT sensor hub for home automation
- Compact network-attached storage (NAS) device
- Wearable computer or health monitor
Compatibility
The Raspberry Pi Zero works with any standard microSD card for booting Raspbian or other supported OSes. It is compatible with most Raspberry Pi HATs via the 40-pin GPIO header (requires soldering a header). Voltage is 5V via micro USB, with typical current draw under 200mA. Works with USB accessories via OTG adapter.
Wiring Notes
To use the GPIO pins, solder a 40-pin male header (not included). For video, a Mini HDMI to HDMI adapter is needed. Power via the leftmost micro USB port (labeled PWR); the other micro USB is for data/OTG.
Why Buy from Compoden
Every component is sourced from verified suppliers and tested for compatibility before listing. We've spent 10 years building projects for makers, schools, and institutions across India. Ships from Bengaluru in 3-5 days. If defective on arrival, replace within 7 days.
Is this compatible with Arduino?
The Raspberry Pi Zero is a full Linux computer, not directly compatible with Arduino shields, but it can communicate with Arduino boards via USB or GPIO serial.
Can I run Windows on it?
Windows 10 IoT Core is not supported, but you can install Raspbian or other Linux distributions. Windows may be possible through emulation but not practical.
Does it include Wi-Fi and Bluetooth?
The standard Raspberry Pi Zero does not have built-in wireless; you'll need a USB Wi-Fi dongle. The Zero W variant includes Wi-Fi and Bluetooth.
