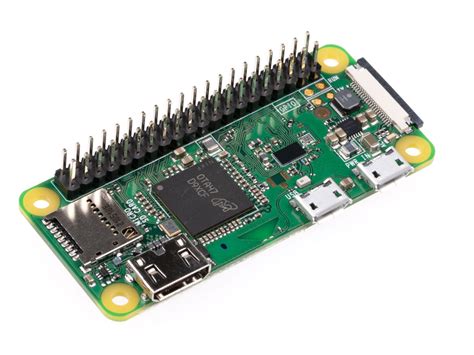

Raspberry Pi Zero W (Pre-Soldered Header)
The Raspberry Pi Zero W is a compact single-board computer with built-in wireless connectivity. This version comes with a 40-pin GPIO header pre-soldered, ready for immediate prototyping. It runs on a 1GHz ARM11 processor and includes WiFi and Bluetooth for networked projects.
Key Specifications
| Specification | Value |
|---|---|
| CPU | BCM2835 1GHz ARM11 |
| RAM | 512MB |
| Wireless | 802.11n WiFi, Bluetooth 4.1 |
| GPIO | 40-pin header (pre-soldered) |
| Dimensions | 65mm x 30mm |
| Power | 5V via micro USB |
What You Can Build With This
- IoT weather station with sensor readings over WiFi
- Retro game console using emulator software
- Home automation hub controlling lights and appliances
- Portable security camera with motion detection
Compatibility
The Pi Zero W runs Raspberry Pi OS and works with any microSD card (not included). It supports standard HATs and add-on boards via the GPIO header. The board operates at 5V, and GPIO pins use 3.3V logic, pairing well with most sensors and modules.
Wiring Notes
Connect power via the micro USB port marked “PWR” — do not exceed 5V. GPIO pins are 3.3V tolerant only, so use voltage shifters for 5V signals. The pre-soldered header provides direct access to I²C, SPI, and UART interfaces.
Why Buy from Compoden
Every component is sourced from verified suppliers and tested for compatibility before listing. We've spent 10 years building projects for makers, schools, and institutions across India. Ships from Bengaluru in 3-5 days. If defective on arrival, replace within 7 days.
Is this compatible with Raspberry Pi OS?
Yes, it fully supports Raspberry Pi OS Lite and the full desktop version.
Can I use this as a desktop computer?
It can run a lightweight desktop, but performance is limited; it's best suited for headless or embedded applications.
Does it include a power supply or microSD card?
No, the package includes only the Raspberry Pi Zero W board with pre-soldered header.
📦 Free Setup Handoff Document Included
Every Compoden order includes a free setup handoff document — step-by-step instructions to get your component working within minutes. Download it via QR code on your package. The handoff document is also trained to help you troubleshoot the majority of problems.
Ask Soldr above what you can build with this — it knows every Compoden kit this part appears in.
