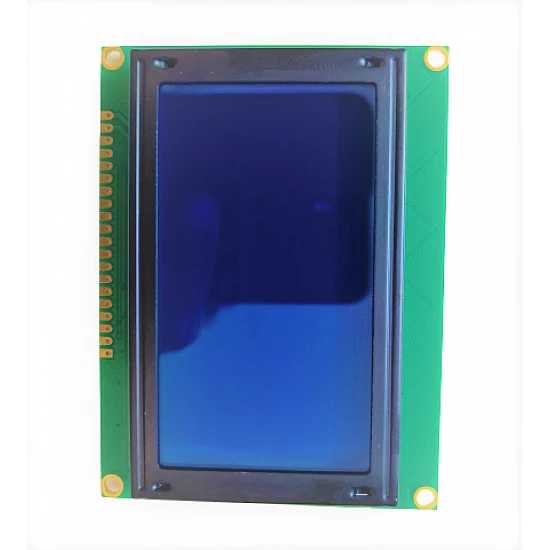

RG12864E 128x64 Graphic LCD Display Module (Blue Backlight)
A 128x64 pixel graphic LCD module (RG12864E) using NT7107/NT7108 column/row drivers over a 6800-series parallel interface. It is a COB module suited to embedded and industrial graphic display use.
Specifications
- 128x64 pixel graphic
- NT7107/NT7108 controller
- 3.3-6V input
- 6800 parallel interface
- Viewing angle >160 degrees
- Operating -20 to +70 C
- Dimensions 113 x 53 x 10 mm
- Viewing area 72 x 40 mm
Compatible with
- Microcontrollers with 6800 parallel bus
- 3.3-6V systems
Build it with Compoden's AI
Tell Compoden's AI build assistant what you want to display and it picks a compatible screen, checks it against your board's interface and voltage, and hands you the wiring and the driver code matched to the exact module - all from real in-stock parts.
Built and Backed by Compoden
We have spent 10 years supplying displays, boards, and parts to makers, schools, and engineering teams across India. Every Compoden order includes our AI build companion to help you wire the screen and write the driver code.
What is the resolution?
128x64 pixels.
What interface does it use?
A 6800-series parallel interface driven by NT7107/NT7108 controllers.
What is the operating temperature range?
-20C to +70C.
