RGB LED 24 Bit WS2812 Circular Development Board
RGB LED 24 Bit WS2812 Circular Development Board

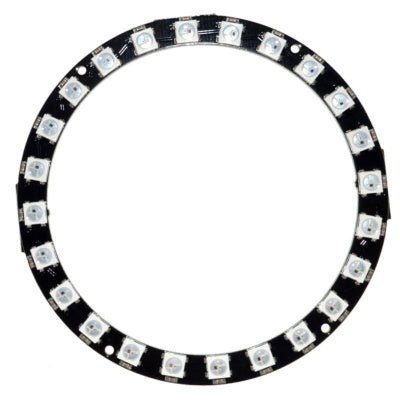

The RGB LED 24 Bit WS2812 Circular Development Board features 24 super bright WS2812 5050 RGB LEDs arranged on a 86mm diameter circular PCB. Each LED is individually addressable, allowing you to create dynamic lighting effects using a single microcontroller pin. This board is ideal for makers, hobbyists, and students building colorful display projects.
Specifications
- LED Type: 24 x WS2812 5050 RGB LEDs (NeoPixel compatible)
- Operating Voltage: 5V DC
- Logic Level: 5V (3.3V compatible with level shifting)
- Interface: Single-wire digital control (DI/DO)
- Board Diameter: 86mm (outer)
- Color Depth: 24-bit per pixel (16.7 million colors)
- Built-in IC: Each LED has integrated driver IC
Compatible with
- Arduino (Uno, Mega, Nano, Leonardo)
- ESP32 and ESP8266
- Raspberry Pi (via GPIO or SPI)
- STM32 and other 5V/3.3V microcontrollers
- Adafruit NeoPixel library compatible
What you can build with it
- Circular clock or timer display with color-coded segments
- Interactive mood lighting or ambient light ring for desks
- LED ring for audio visualizers or VU meters
Built and Backed by Compoden
Every RGB LED WS2812 Circular Board comes with access to our AI build companion — delivered via QR code, email, or WhatsApp — to help you wire and program your project from start to finish. With 10 years of experience supplying electronics to makers, schools, and engineering institutions across India, we ensure you get reliable components and real support. Pay your way: UPI, cards, or Cash on Delivery, anywhere in India.
What is the difference between WS2812 and WS2812B?
WS2812 and WS2812B are functionally identical — both use a single-wire control protocol and are 5V addressable RGB LEDs. The WS2812B is a newer package variant with improved heat dissipation. This board uses WS2812 LEDs, which work with the same libraries and code as WS2812B.
How do I power the RGB LED Circular Board?
For full brightness with all 24 LEDs, use a 5V DC power supply capable of at least 2A. For lower brightness or fewer LEDs, a 5V 1A supply may suffice. Always connect the power and ground before the data line to avoid damage.
What payment options are available for the RGB LED WS2812 Circular Board?
You can pay using UPI, credit/debit cards, or Cash on Delivery (COD). All payment options are available across India.
How long does delivery take?
We ship the RGB LED WS2812 Circular Board across India including Delhi, Mumbai, Bangalore, Hyderabad, Chennai, and Pune. Delivery typically takes 3–7 business days depending on your location.
Ask Soldr above what you can build with this — it knows every Compoden kit this part appears in.
Shipping Information
- Prepaid Orders: ₹75 for orders up to ₹999, FREE shipping above ₹999
- COD Orders: ₹125 shipping + ₹50 COD fee = ₹175 total
- Delivery Timeline: Dispatch in 1-2 days, delivery in 2-7 days depending on location
Returns & Warranty
- 7-Day Return: Manufacturing defects only (approval required)
- Warranty: 7 days from delivery
- Non-Returnable: Batteries, consumables, cut wires, clearance items
