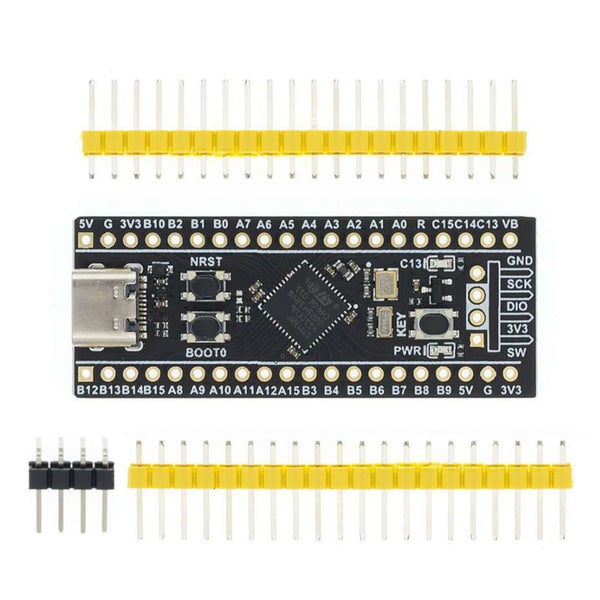

STM32 Black Pill (F411CEU6) Development Board
STM32 Black Pill (F411CEU6) Development Board
The STM32 Black Pill is a 32-bit development board built around the STM32F411CEU6 microcontroller, with an ARM Cortex-M4 core at 100 MHz and a hardware floating-point unit. It is a step up from the Blue Pill, with more memory, a USB-C connector, and faster math for signal and control work.
Specifications
- MCU: STM32F411CEU6, ARM Cortex-M4 with FPU at 100 MHz
- Memory: 512 KB Flash, 128 KB SRAM
- Logic level: 3.3V (many GPIO pins are 5V tolerant)
- Connector: USB-C
- Interfaces: multiple SPI, I2C, USART, USB 2.0 full-speed
- Dimensions: approx. 53 x 21 mm
Compatible with
Use the Arduino IDE with the STM32duino core, PlatformIO, or STM32CubeIDE, and program it over an ST-Link V2 or USB DFU. It works with 3.3V sensors, displays, and modules common to Arduino and ESP32 builds.
What you can build with it
- Real-time control loops that benefit from the floating-point unit
- Audio and basic DSP experiments
- USB devices and faster data acquisition
Built and Backed by Compoden
Every Compoden order includes our AI build companion, delivered by QR code, email, and WhatsApp, to help you wire, flash, and program STM32 Black Pill (F411CEU6) Development Board into a working project. We have spent 10 years supplying boards and components to makers, schools, and engineering institutions across India. When a build does not behave as expected, our team and the AI companion help you debug it.
How is the Black Pill different from the Blue Pill?
The Black Pill uses a faster Cortex-M4 with a floating-point unit, more Flash and SRAM, and a USB-C connector, making it better for math-heavy or memory-hungry projects.
Does it have a floating-point unit?
Yes, the STM32F411CEU6 includes a hardware FPU, which speeds up calculations used in control and signal processing.
How do I program it?
Use the Arduino IDE with STM32duino, PlatformIO, or STM32CubeIDE, uploading over an ST-Link V2 or USB DFU.
