XYQ 2 DIY Wooden Drone Quadcopter Kit – Build Your Own Drone
XYQ 2 DIY Drone Quadcopter Wooden Assembly Kit – 4-Channel RC Drone

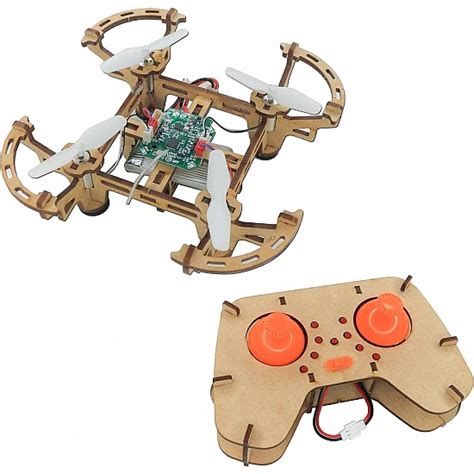

The XYQ 2 is a DIY quadcopter kit with a laser-cut wooden frame, designed for hobbyists who want to build and fly their own drone. It includes four coreless motors, matching propellers, a flight controller with gyro stabilization, and all necessary hardware. Assembly takes about 30 minutes and requires basic soldering skills.
Key Specifications
| Specification | Value |
|---|---|
| Frame Material | Laser-cut plywood (wooden) |
| Motor Type | 4 × 7mm coreless brushed motors |
| Propeller Size | 65mm diameter (2CW, 2CCW) |
| Flight Controller | 6-axis gyro stabilization (MPU6050-based) |
| Receiver | Compatible with PWM or PPM 2.4GHz receivers (not included) |
| Power Requirement | 3.7V 1S LiPo battery (JST connector, not included) |
What You Can Build With This
- A stable indoor/outdoor quadcopter for line-of-sight flying
- A platform to learn drone PID tuning and flight dynamics
- An FPV drone by adding a micro camera and video transmitter
- A custom mini drone with alternative frame modifications
Compatibility
This kit works with any PWM or PPM RC receiver that outputs standard servo signals. It pairs well with FlySky, FrSky, or Spektrum transmitters using compatible receivers. The flight controller runs on 3.7V; ensure your receiver and other components also support this voltage.
Wiring Notes
Solder the motor wires to the flight controller pads marked M1–M4, ensuring correct polarity. Connect the receiver channels to the board using the provided jumper wires. The board includes a built-in voltage regulator, so connect a 1S battery directly to the power pins.
Why Buy from Compoden
Every component is sourced from verified suppliers and tested for compatibility before listing. We've spent 10 years building projects for makers, schools, and institutions across India. Ships from Bengaluru in 3-5 days. If defective on arrival, replace within 7 days.
Is this compatible with Spektrum DSMX transmitters?
Yes, as long as you use a compatible Spektrum receiver that outputs PWM or PPM signals. The flight controller accepts standard RC signals.
Does the kit include a battery or charger?
No, the kit does not include a battery or charger. You will need a 3.7V 1S LiPo battery with a JST connector and a suitable charger.
What skill level is required for assembly?
Basic soldering experience is recommended. The wooden frame slots together without glue, but motor and receiver connections require soldering.
