Build Your Own Weather Station Starter Kit: What You Actually Need to Get Started
A DIY weather station starter kit needs four things at minimum: a microcontroller board to read sensor data (an ESP32-family board if you want the readings pushed over WiFi, a plain Arduino Uno if the serial monitor is enough to start), a single sensor that reports temperature, humidity, and barometric pressure together (a BME680 or BMP280 does this in one module — a DHT22 alone only covers temperature and humidity, not pressure), a breadboard with jumper wire to prototype the wiring without soldering, and a stable 5V power source. Everything past that — an OLED or TFT display, an SD card logger, a rain gauge, WiFi dashboarding — is an upgrade to that base, not part of the minimum kit.
What parts does a weather station starter kit need?
At the center of the build is the sensor, because it decides what the kit can actually report. In a live build captured for this guide, Compoden's AI build assistant explained why it picked a combined sensor over a temperature-only one:
"The BME680 Sensor Module is the main sensor for this project. It measures temperature, humidity, pressure, and even gas (VOC, which stands for Volatile Organic Compounds). It communicates using an i2c interface, which is a common way for microcontrollers to talk to sensors."
Beyond the sensor, a working kit needs:
- A microcontroller board — the assistant chose an ESP32-C3 board for this build specifically because the prompt implied wanting the data available off the device: "This board has built-in Wi-Fi and Bluetooth, so it can connect to other devices wirelessly... This board is a good choice because it can connect to the sensor and send the environmental data you collect." A plain Arduino Uno works too if you only need the serial monitor.
- Power — a 5V USB adapter. The assistant selected a 5V 2A Micro-USB adapter, noting it "takes standard wall power (100-240V) and converts it to 5V at 2A (amps), which is enough current to power the development board."
- A breadboard and wire — for connecting the sensor without soldering while you test it.
- Resistors — the BME680 needs a pull-up resistor on its I2C lines to communicate reliably, which is why a resistor variety pack is in the tray even though the sensor module itself is the star part.
The assistant also flagged a wiring risk unprompted, the kind of detail a beginner parts list often skips: "the BME680 sensor is NOT 5V tolerant, meaning if you accidentally connect it to 5V instead of 3.3V, it will be damaged. You must ensure it only receives power and logic signals at 3.3V." The 5V adapter in the kit powers the board; the sensor itself must be wired to the board's 3.3V pin, not straight to the adapter.
Which sensor should you use — DHT22, BMP280, or BME680?
The three sensors are not interchangeable, and the difference is which of the three readings each one actually measures:
- DHT22 — temperature and humidity only, no pressure. Compoden's own listing specifies a temperature range of -40°C to +80°C (±0.5°C accuracy) and 0-100% RH humidity (±2% RH typical), read over a single digital wire with a built-in pull-up resistor already on the module. It cannot report barometric pressure at any price, because the chip inside it doesn't sense pressure.
- BMP280 — pressure and temperature only, no humidity. It measures 300-1100 hPa of pressure and -40°C to +85°C of temperature (±1 hPa, ±0.5°C accuracy) over I2C or SPI. If you only care about pressure trends — rising pressure generally means clearing weather, falling pressure generally means a system moving in — the BMP280 covers that on its own.
- BME680 — temperature, humidity, pressure, and gas (VOC) in a single I2C module. The live build capture above lists it at -40°C to +85°C (±1°C), 0-100% RH (±3% RH), and 300-1100 hPa (±1 hPa), drawing about 2.1mA. It is the only one of the three that answers "what should be in a weather station starter kit" without needing a second sensor alongside it, which is why it is the part Compoden's assistant reached for once asked to fill that specific gap.
The practical rule: if the goal is "temperature, humidity, and pressure" — the three things this guide is about — a single BME680 replaces what would otherwise be a DHT22 and a BMP280 wired in separately. If the budget is tighter and gas sensing isn't needed, a BMP280 next to a DHT22 covers the same three readings for less than a BME680 alone, at the cost of two I2C addresses and two datasheets instead of one.
Do you need a display for a weather station?
No, not to get the kit working. The Arduino IDE or Soldr's own serial monitor, read over the same USB cable used to power and program the board, is enough to see live temperature, humidity, and pressure numbers while you're building and testing. A display is the first upgrade most people add once the electronics work: a small I2C OLED (commonly the SSD1306 0.96") for plain numbers, or a small TFT panel if you want icons — Compoden's own animated weather display kit uses a TFT screen specifically to show sun, cloud, and rain icons instead of raw numbers. Neither is required for the sensor readings themselves to work.
What can a DIY weather station actually track?
With a BME680 (or a DHT22 plus BMP280 pair), the kit directly measures three things: air temperature, relative humidity, and barometric pressure. From those three raw readings, firmware can derive a few more without any extra hardware — a dew point calculation from temperature and humidity, a heat index from the same pair, and a pressure trend (rising, falling, or steady over a logged window) from repeated pressure readings, which is the basis of the classic "storm glass" style forecast: falling pressure suggests a low-pressure system moving in, rising pressure suggests clearing conditions. A BME680 adds a fourth axis — an indoor air quality (IAQ) index derived from gas resistance — that a BMP280/DHT22 pair cannot produce. What none of this hardware measures on its own: rainfall amount, wind speed, or wind direction — those need separate sensors (a tipping-bucket rain gauge, an anemometer) that are not part of a starter kit built around temperature, humidity, and pressure.
Watch a real starter kit get built live

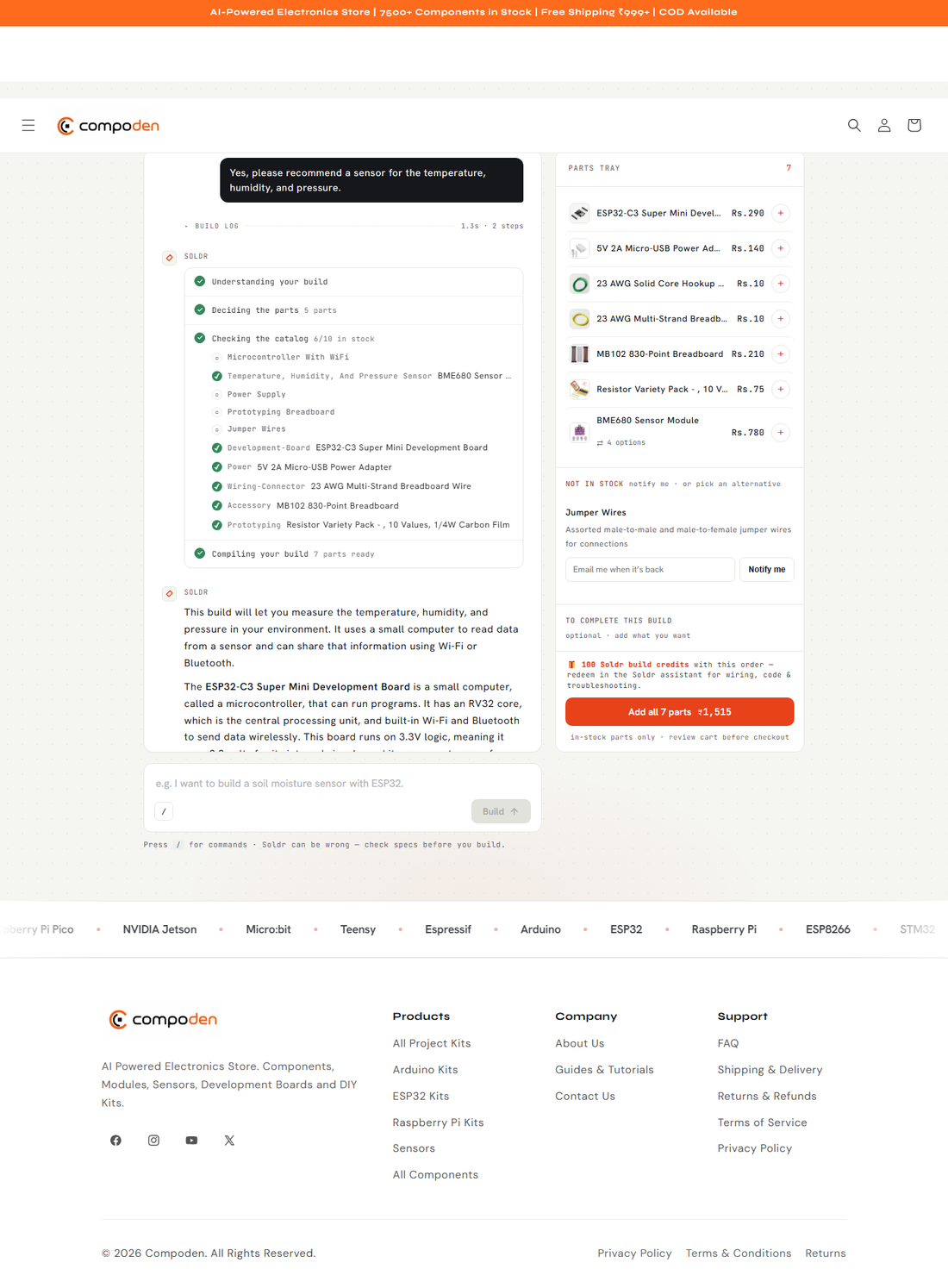

Rather than describe a generic kit, we typed one real sentence into Compoden's AI build assistant on the storefront and let it pick parts, price them, and explain them — unscripted, screenshotted as it happened:
"I want to build a DIY weather station to monitor temperature, humidity and pressure at home. What parts do I need for a starter kit?"
The first pass came back with a six-part tray built around an ESP32-C3 board, but it didn't fill in the sensor — it named the gap out loud instead of guessing: "You still need sensors for temperature, humidity, and pressure. Please let us know if you'd like us to recommend some." We answered "Yes, please recommend a sensor for the temperature, humidity, and pressure," and the assistant completed the tray with the BME680:
Its closing summary of the finished tray was direct about both the plan and the risk to watch for:
"This build will let you measure the temperature, humidity, and pressure in your environment. It uses a small computer to read data from a sensor and can share that information using Wi-Fi or Bluetooth." ... "Finally, the BME680 sensor must be calibrated before its readings mean anything, which involves a software step after assembly."
Watch the first test program get generated
We then asked Compoden's build companion, Soldr, for the actual first sketch a new owner of a weather station kit would run:
"I just got a DIY weather station starter kit with an Arduino and a sensor. Write a simple first test program to read temperature and humidity and print it to the serial monitor."
Soldr assembled its own parts list for this prompt — an Arduino Uno R3, a DHT11 temperature and humidity sensor, an SYB-170 breadboard, male-to-male jumper wires, a 5V 2A barrel-connector adapter, and a resistor pack — then wrote the sketch. Its own description of the code was plain:
"Here's a simple Arduino sketch to read temperature and humidity from a DHT11 sensor connected to digital pin 2 and print the readings to the serial monitor at 9600 baud."
The Firmware tab shows the code appear essentially all at once once generation finishes — there is no visible character-by-character streaming. The visible portion includes #include <DHT.h> and #include <Adafruit_Sensor.h>, a DHT_PIN 2 define with an inline comment naming the digital pin, and a setup() function that opens the serial port at 9600 baud and waits 2 seconds for the sensor to settle before its first read. Soldr also surfaced its own limitation in plain text rather than hiding it: "this code has not been checked against a board. Your build has parts in it, but no board I can compile for — so I could not verify the pins. If you are using a board you already own, tell me exactly which one and I will re-generate it properly wired for that board."
Who this kit is for
This is a first-environmental-sensor kit, not a finished weather station product — it suits someone who already knows basic breadboard wiring (or is willing to learn it alongside their first I2C sensor) and wants a real, live reading of the temperature, humidity, and pressure in their own home rather than a phone app's estimate for their city. It is not weatherproof out of the box — the BME680 module needs an enclosure with ventilation to be used outdoors — and it is not aimed at meteorological-grade accuracy or production use.
Get everything in this kit
The exact 7 parts Compoden's AI build assistant picked once the tray was complete, at today's live price and stock — each links straight to checkout, or add the whole tray in one click.
| Part | Role | Price | |
|---|---|---|---|
| ESP32-C3 Super Mini Development Board | Main controller | ₹290 | Add to cart → |
| BME680 Sensor Module | Temperature, humidity, and pressure sensor | ₹780 | Add to cart → |
| 5V 2A Micro-USB Power Adapter | Power supply | ₹140 | Add to cart → |
| MB102 830-Point Breadboard | Prototyping base | ₹210 | Add to cart → |
| Resistor Variety Pack, 10 Values, 1/4W Carbon Film | Pull-up resistor for the sensor | ₹75 | Add to cart → |
| 23 AWG Solid Core Hookup Wire | Wiring | ₹10 | Add to cart → |
| 23 AWG Multi-Strand Breadboard Wire | Wiring | ₹10 | Add to cart → |
| Total | ₹1,515 | Add all 7 to cart → |
If you would rather skip picking parts individually, Compoden also stocks a pre-built Weather Station Kit with Arduino Uno + Sensors from ₹1,125 (Clone variant; an R3 Original and an R4 WiFi variant are also listed) — a one-click alternative that bundles the board and sensors into a single listing with a display and trend arrows already accounted for, instead of assembling the 7-part tray above yourself. Prices and stock verified live at the time this was written; Compoden's storefront always reflects the current price at checkout.
Built and Backed by Compoden
Every part above ships from Compoden's own India stock, tested for compatibility before it's carded together — not sourced individually and hoped to work. Delivery in 3–7 days across India, with COD and UPI available at checkout. If a part in this kit doesn't perform as described, Compoden's support team will help you troubleshoot or replace it.
FAQ
What is the minimum DIY weather station starter kit?
A microcontroller board, a combined temperature-humidity-pressure sensor such as the BME680 (or a DHT22 and BMP280 wired in together), a breadboard with jumper wire, and a 5V power adapter. That is enough to read live temperature, humidity, and pressure over USB. A display and WiFi dashboard are upgrades, not requirements.
Which sensor should I choose for a DIY weather station — DHT22, BMP280, or BME680?
A DHT22 covers temperature and humidity only. A BMP280 covers pressure and temperature only. A BME680 covers all three — temperature, humidity, and pressure — plus gas (VOC) sensing, in one I2C module. For a kit built specifically around temperature, humidity, and pressure, the BME680 is the single-sensor option; a DHT22 plus a BMP280 covers the same three readings across two modules instead of one.
Do I need WiFi for a weather station, or is a serial monitor enough to start?
A serial monitor over USB is enough to read live values while building and testing. WiFi (built into ESP32-family boards) is what lets the readings reach a phone or a dashboard without a laptop plugged in — it's a reason to choose an ESP32 over a plain Arduino Uno, not a requirement for the sensor itself to work.
Can this kit predict rain, or does it just show current readings?
On its own, it reports the current temperature, humidity, and pressure. A basic forecast — pressure rising versus falling over time — needs firmware that logs pressure readings and compares them, which is a software addition on top of the same hardware, not an extra part. It cannot measure rainfall, wind speed, or wind direction; those need separate sensors not included in a temperature/humidity/pressure starter kit.
