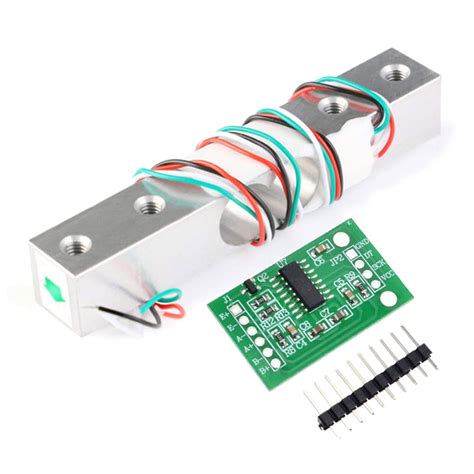

1KG Load Cell - Weight Sensor for Electronic kitchen Weighing Scale

This 1kg load cell is a resistive strain gauge sensor designed for precise weight measurement in electronic scales and DIY projects. It converts applied force into a measurable electrical signal, making it ideal for building digital kitchen scales, small parts counters, or force measurement tools. With a compact form factor and high linearity, it integrates easily with common microcontrollers using an HX711 amplifier module.

Key Specifications

What You Can Build With This

• Digital kitchen scale with LCD readout
• Small parts counter for inventory management
• Force-sensitive trigger or presence detector
• DIY coffee dosing scale for espresso

Compatibility

This sensor works with any microcontroller or single-board computer that can read analog signals, such as Arduino Uno, ESP32, or Raspberry Pi. For best results, pair it with an HX711 load cell amplifier module, which provides 24-bit ADC resolution and simplifies reading the wheatstone bridge. Operates at 5V logic, compatible with 3.3V systems if using level shifting for the data line.

Wiring Notes

Typical wire color code: red (Excitation+), black (Excitation-), green (Signal+), white (Signal-). Connect to HX711: E+ to red, E- to black, A+ to green, A- to white. Always verify polarity with datasheet before powering. Avoid exceeding maximum excitation voltage to prevent damage.
