2x 18650 Battery Shield V8 Module for Arduino and ESP32/ESP8266
2x 18650 Battery Shield V8 Module – Dual Battery Power for Arduino and ESP Boards

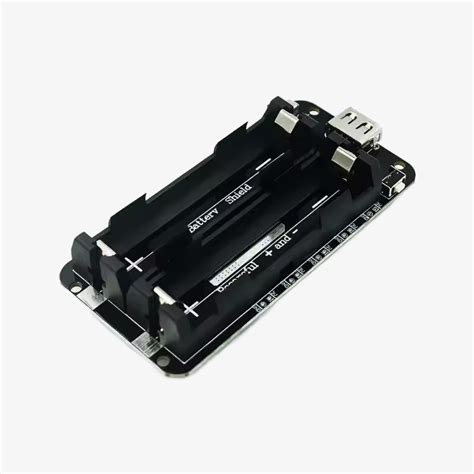

The 2x 18650 Battery Shield V8 Module is a compact power solution that holds two 18650 lithium-ion cells and converts their output to stable 5V and 3.3V rails. Designed for direct stacking on Arduino boards or wiring to ESP32/ESP8266, it enables portable and wireless projects without tethering to a USB supply. Built-in protection circuits prevent over-discharge, over-current, and short circuits, ensuring safe operation for your microcontroller and peripherals.
Key Specifications
| Specification | Value |
|---|---|
| Battery Type | 2 x 18650 Li-ion (3.7V nominal) |
| Output Voltage | 5V DC (boost) and 3.3V DC (LDO) |
| Max Output Current | 1A at 5V, 800mA at 3.3V |
| Protection | Over-discharge, over-current, short circuit |
| On/Off Switch | Yes |
| Dimensions | 53mm x 30mm x 20mm |
What You Can Build With This
- Portable weather station with ESP32 and BME280 sensor
- Bluetooth-controlled RC car using Arduino Nano and motor driver
- IoT environmental monitor with ESP8266 and cloud data logging
- Mobile RFID access control system with Arduino Uno
Compatibility
This shield connects directly to Arduino Uno, Mega, and Nano boards by stacking onto the power and ICSP headers. For ESP32 DevKit and ESP8266 NodeMCU, use jumper wires to connect 5V to Vin, 3.3V to 3.3V, and GND to GND. It operates with standard 18650 cells providing 3.7–4.2V each, and the onboard regulator handles efficient conversion for all common 5V and 3.3V logic.
Wiring Notes
When stacking on an Arduino, align the headers carefully—the shield uses the ICSP port for additional power routing. For ESP boards, confirm polarity before connecting: red wire to positive 5V output, black to GND. Do not insert batteries while the switch is on, and always match the positive terminals to the marked + symbols on the holder.
Why Buy from Compoden
Every component is sourced from verified suppliers and tested for compatibility before listing. We've spent 10 years building projects for makers, schools, and institutions across India. Ships from Bengaluru in 3-5 days. If defective on arrival, replace within 7 days.
Is this compatible with ESP32?
Yes, the shield outputs 5V and 3.3V that match the Vin and 3.3V pins on ESP32 development boards. Just connect with jumper wires.
Does this shield charge the batteries?
No, it is a battery holder with voltage regulation only. You must charge 18650 cells with an external charger before inserting them.
What type of batteries should I use?
Use any standard 18650 lithium-ion cells with a nominal voltage of 3.7V. Unprotected flat-top cells fit best; button-top may be tight.
