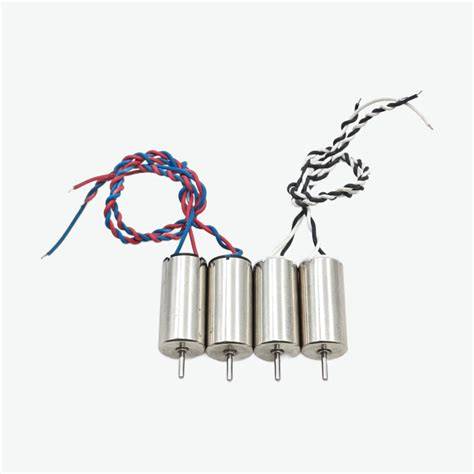

720 Magnetic Micro Coreless Drone Motors Set (2 CW + 2 CCW)

The 720 magnetic micro coreless drone motor set delivers four high‑speed motors in a matched pair configuration: two clockwise (CW) and two counter‑clockwise (CCW). These 7 mm diameter, 20 mm long coreless motors are built for mini quadcopters and tiny whoop‑style builds where low weight and fast throttle response matter. Neodymium magnets inside each shell produce consistent torque on a single LiPo cell, so you can build a responsive micro drone without complex gearing.

Key Specifications

What You Can Build With This

• A 65 mm‑class tiny whoop with a 1S brushed flight controller and 31 mm props
• A lightweight indoor micro quadcopter that fits into the palm of your hand
• A simple thrust‑vectored paper plane with differential motor control
• A miniature vibration robot or a two‑motor line follower using the CW/CCW pair alone

Compatibility

These motors pair directly with 1S brushed flight controllers such as BetaFPV Lite, Eachine Beecore, or generic F3/F4 brushed boards. They accept propellers with a 1 mm shaft hole; typical choices are 31 mm 2‑blade or 40 mm 2‑blade propellers. Because each motor draws around 2 A at full throttle, use a battery capable of 10 A continuous discharge – a 300‑450 mAh 1S LiPo works well.

Wiring Notes

Solder the motor wires directly to the flight controller’s ESC pads. CW motors often have red and blue leads, while CCW motors have black and white leads. Always verify rotation by briefly powering up before final assembly; swap any two wires of a brushed motor to reverse its direction.

Why Buy from Compoden

Every component is sourced from verified suppliers and tested for compatibility before listing. We've spent 10 years building projects for makers, schools, and institutions across India. Ships from Bengaluru in 3-5 days. If defective on arrival, replace within 7 days.
